A hollow structural section carried beam connects to a wide flange column using structural angles sized as L4x4x1/2. The top and bottom seat angles are welded with five-sixteenth inch and one-quarter inch fillet welds on three sides or both sides. A maximum one-half inch clearance is maintained between the beam and support. A column cap plate is detailed similarly to standard cap plate connections.

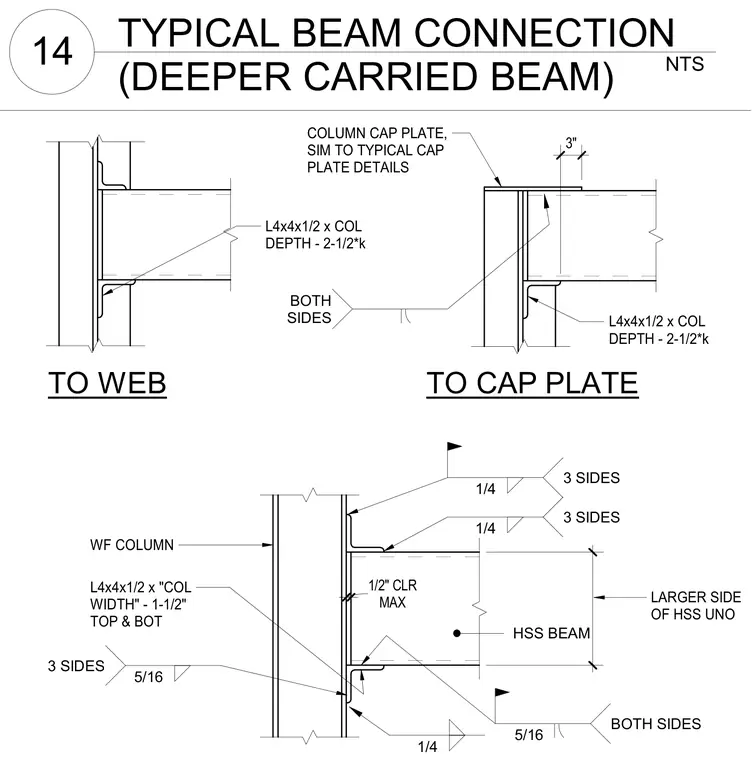

L4x4x1/2 x "COL WIDTH" - 1-1/2" TOP & BOT WF COLUMN L4x4x1/2 x COL DEPTH - 2-1/2*k HSS BEAM TO WEB LARGER SIDE OF HSS UNO . MAX 1/2" CLR 5/16 3 SIDES 5/16 BOTH SIDES 1/4 1/4 3 SIDES 1/4 3 SIDES L4x4x1/2 x COL DEPTH - 2-1/2*k TO CAP PLATE BOTH SIDES COLUMN CAP PLATE, SIM TO TYPICAL CAP PLATE DETAILS 3" NTS 14 TYPICAL BEAM CONNECTION (DEEPER CARRIED BEAM)
