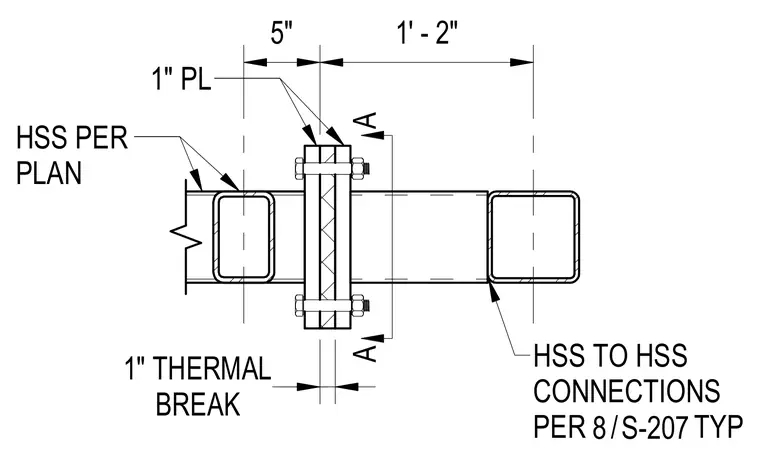

Two hollow structural section members are joined end-to-end with a one-inch thermal break sandwiched between one-inch plates. The connection is secured with through bolts spanning the assembly. Hollow structural sections are sized per plan and connected using standard details.
A A 1' - 2" 5" BREAK 1" THERMAL 1" PL HSS PER PLAN HSS TO HSS CONNECTIONS PER TYP / 8 S-207
