Steel deck framing runs perpendicular to a bond beam wall and is supported by four-by-four-by-one-quarter-inch angles one foot three inches long. Each angle is secured with two five-eighth-inch diameter expansion anchors featuring a four-inch embedment at twelve inches on center, centered within the deck flutes.

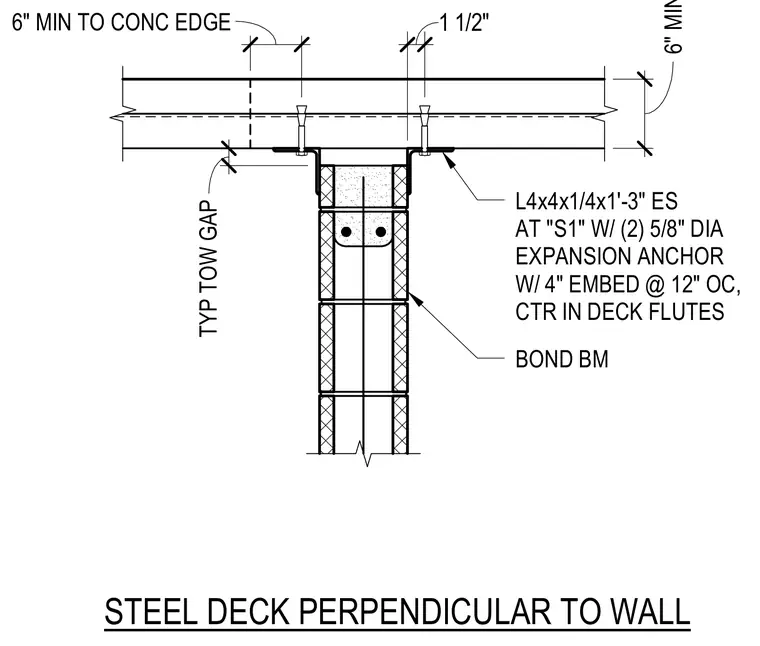

L4x4x1/4x1'-3" ES AT "S1" W/ (2) 5/8" DIA EXPANSION ANCHOR W/ 4" EMBED @ 12" OC, CTR IN DECK FLUTES BOND BM STEEL DECK PERPENDICULAR TO WALL 1 1/2" TYP TOW GAP 4 1/2" 6" 6" MIN 6" MIN TO CONC EDGE 1 1/2"
