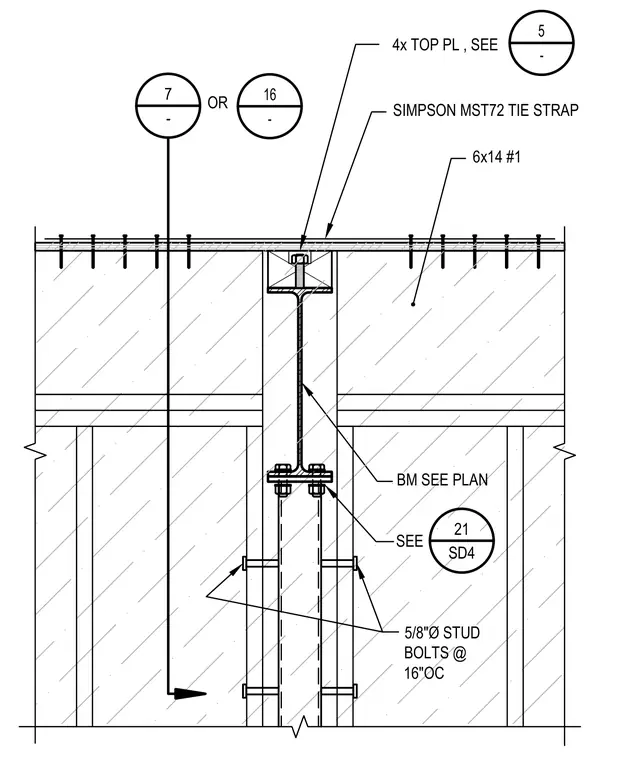

A 6x14 timber wood beam connects to a steel wide-flange beam with a top plate and a Simpson MST72 tie strap. The steel beam is supported from below by a column or structural element with five-eighths-inch diameter stud bolts spaced at sixteen inches on center. Additional connection details are referenced via detail bubbles.
4x TOP PL , SEE 5 - SIMPSON MST72 TIE STRAP BM SEE PLAN 6x14 #1 21 SD4 SEE 7 - OR 16 - 5/8"Ø STUD BOLTS @ 16"OC
