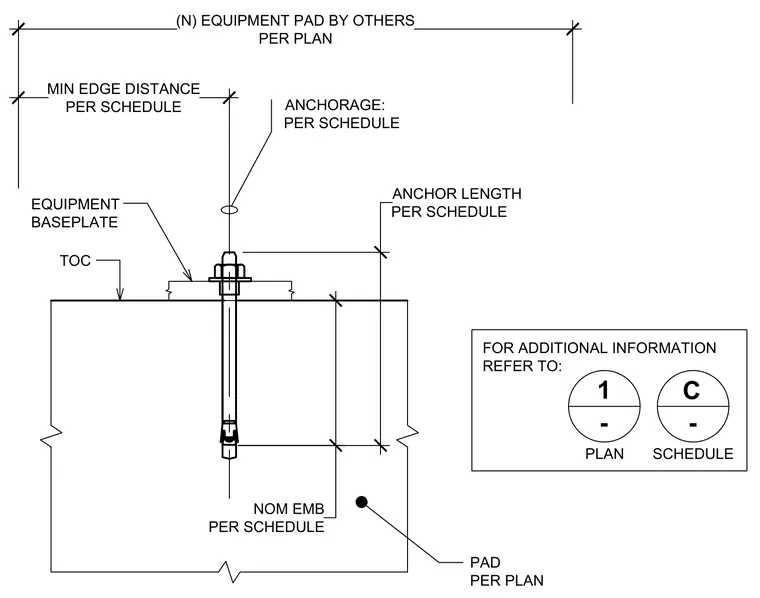

An equipment baseplate is anchored to a concrete pad with anchor bolts sized and spaced per the schedule. The detail indicates required nominal embedment and minimum edge distance dimensions. A reference note directs the user to the plan and schedule for additional information regarding pad dimensions and anchorage requirements.
MIN EDGE DISTANCE PER SCHEDULE (N) EQUIPMENT PAD BY OTHERS PER PLAN ANCHORAGE: PER SCHEDULE PAD PER PLAN TOC EQUIPMENT BASEPLATE NOM EMB PER SCHEDULE ANCHOR LENGTH PER SCHEDULE FOR ADDITIONAL INFORMATION REFER TO: 1 - C - PLAN SCHEDULE
