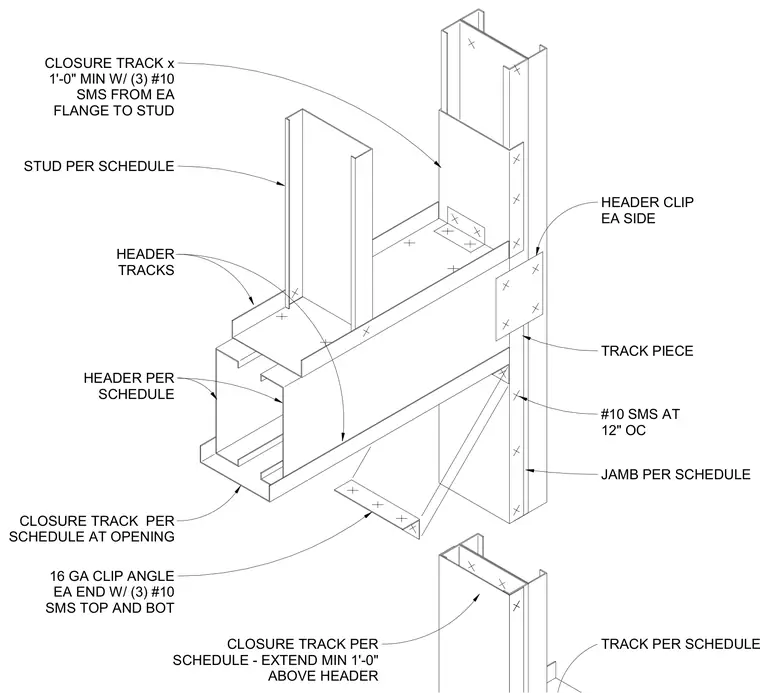

A boxed header assembly for cold-formed steel framing at door or window openings consists of nested header tracks sized per schedule, supported at each end by jamb studs. Sixteen-gauge clip angles are secured at each end with three number ten self-drilling metal screws at the top and bottom. Closure tracks extend a minimum of one foot above the header and are fastened from each flange to the stud with number ten self-drilling metal screws spaced at twelve inches on center.
TRACK PIECE JAMB PER SCHEDULE TRACK PER SCHEDULE HEADER PER SCHEDULE HEADER TRACKS STUD PER SCHEDULE 16 GA CLIP ANGLE EA END W/ (3) #10 SMS TOP AND BOT CLOSURE TRACK x 1'-0" MIN W/ (3) #10 SMS FROM EA FLANGE TO STUD HEADER CLIP EA SIDE CLOSURE TRACK PER SCHEDULE AT OPENING CLOSURE TRACK PER SCHEDULE - EXTEND MIN 1'-0" ABOVE HEADER #10 SMS AT 12" OC
