A steel beam connects to the top of a hollow structural section column with a maximum one-half inch gap. A stiffener plate measuring three-eighths of an inch by the hollow structural section width plus one inch is centered and welded to each side of the column using five-sixteenth-inch fillet welds. An internal stiffener plate measuring one-quarter inch by depth over two minimum is welded to each side with quarter-inch fillet welds. Three-quarter-inch-diameter erection bolts secure the connection, with the shear plate extended for intersecting beams to the bottom flange on each side.

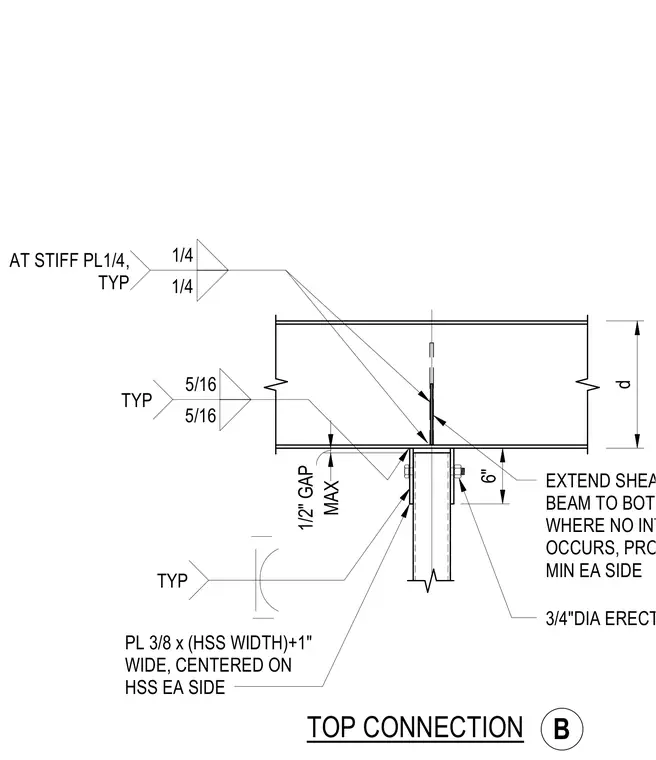

EXTEND SHEAR PL FOR INTERSECTING BEAM TO BOTTOM FLANGE EA SIDE, WHERE NO INTERSECTING BEAM OCCURS, PROVIDE STIFF PL 1/4 x d/2 MIN EA SIDE PL 3/8 x (HSS WIDTH)+1" WIDE, CENTERED ON HSS EA SIDE 3/4"DIA ERECTION BOLT TOP CONNECTION TYP 5/16 5/16 TYP 1/4 1/4 AT STIFF PL1/4, TYP B MAX 1/2" GAP d 6"
