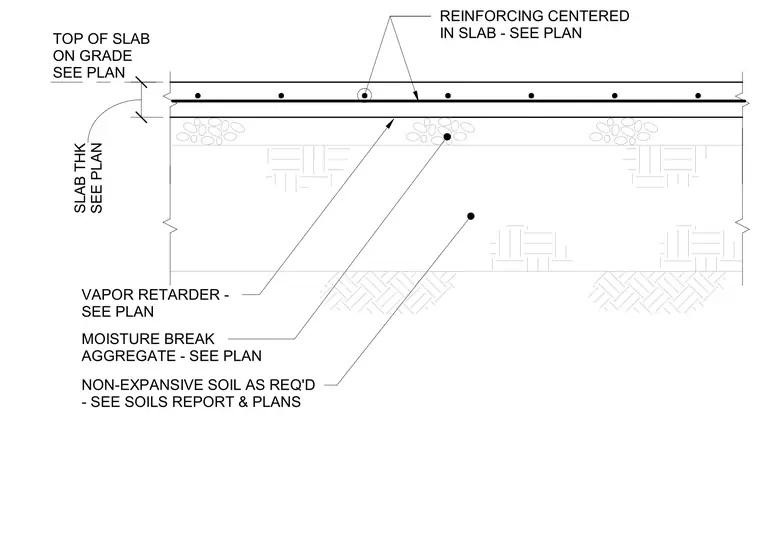

A standard concrete slab on grade assembly is supported by non-expansive subgrade soil. A moisture break aggregate layer rests directly on the compacted soil, placed below a vapor retarder membrane. The concrete slab sits above the vapor retarder with slab thickness and reinforcing steel sized per plan and centered within the slab. Non-expansive soil placement is coordinated with project soils reports and structural plans.
TOP OF SLAB ON GRADE SEE PLAN NON-EXPANSIVE SOIL AS REQ'D - SEE SOILS REPORT & PLANS VAPOR RETARDER - SEE PLAN MOISTURE BREAK AGGREGATE - SEE PLAN REINFORCING CENTERED IN SLAB - SEE PLAN SEE PLAN SLAB THK .
