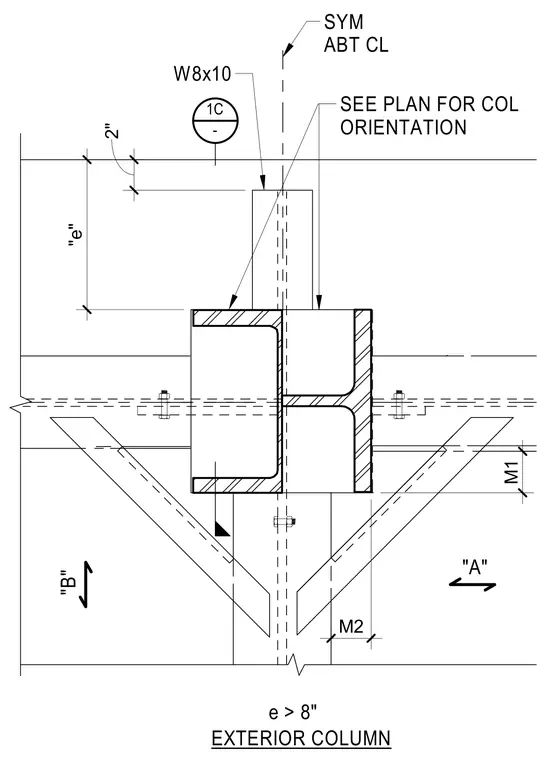

An exterior W8x10 wide-flange steel column is shown centered on a structural centerline with symmetric detailing about the centerline. Column orientation is sized per plan with defined offset dimensions labeled as "e" greater than eight inches, alongside secondary dimensional parameters "A", "B", M1, and M2.
"A" "B" 2" SEE PLAN FOR COL ORIENTATION SYM ABT CL W8x10 EXTERIOR COLUMN e > 8" 1C - M1 M2 "e"
