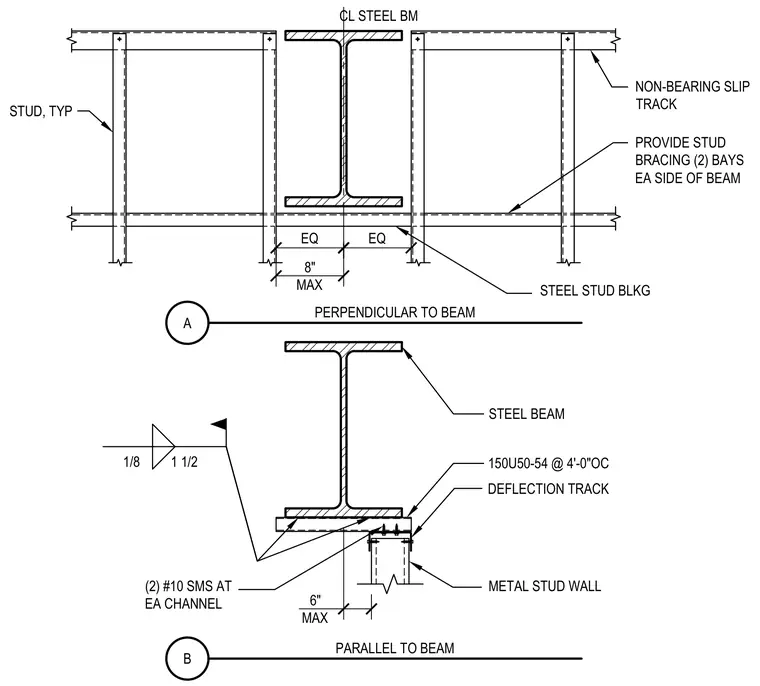

Cold-formed steel framing interfaces with a structural steel beam using non-bearing slip tracks and deflection tracks. The perpendicular condition uses a slip track beneath the beam centerline with stud blocking spaced across two bays on each side of the beam. The parallel condition fastens a 150U50-54 stud spaced at four feet on center with a deflection track, secured using two number ten self-tapping metal screws at each channel.
CL STEEL BM NON-BEARING SLIP TRACK EQ EQ 8" MAX STEEL STUD BLKG PROVIDE STUD BRACING (2) BAYS EA SIDE OF BEAM STEEL BEAM 150U50-54 @ 4'-0"OC DEFLECTION TRACK METAL STUD WALL (2) #10 SMS AT EA CHANNEL 1/8 1 1/2 6" MAX STUD, TYP B PARALLEL TO BEAM A PERPENDICULAR TO BEAM
