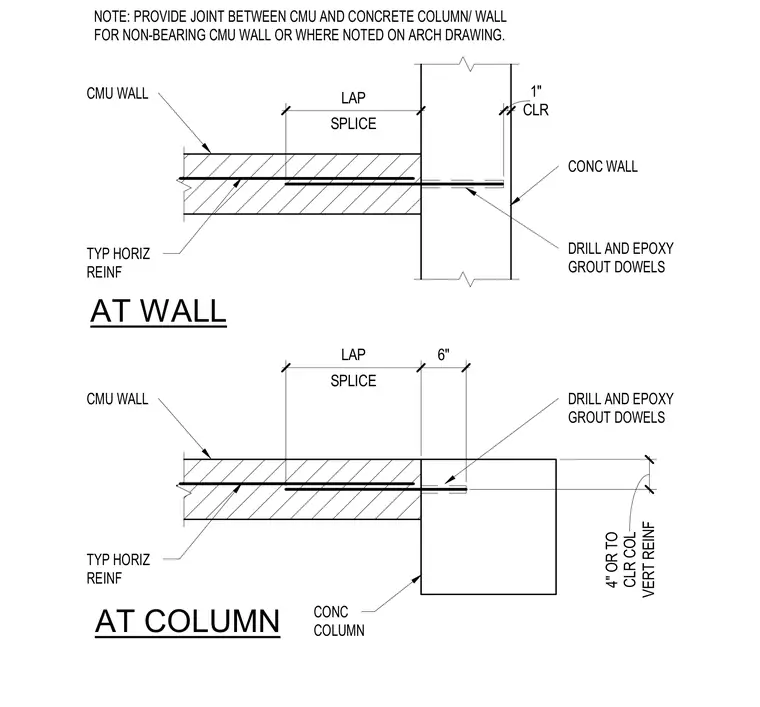

Drilled and epoxy-grouted dowels connect a concrete masonry unit wall to a concrete wall or column. Typical horizontal reinforcing in the masonry wall laps with the dowels anchored into the concrete element. A joint is provided between the masonry and the concrete wall or column for non-bearing masonry conditions or as noted on architectural drawings. Clearances and splice lengths are specified for proper alignment and structural continuity.
AT WALL AT COLUMN DRILL AND EPOXY GROUT DOWELS CONC WALL CMU WALL NOTE: PROVIDE JOINT BETWEEN CMU AND CONCRETE COLUMN/ WALL FOR NON-BEARING CMU WALL OR WHERE NOTED ON ARCH DRAWING. CONC COLUMN TYP HORIZ REINF CLR 1" DRILL AND EPOXY GROUT DOWELS SPLICE LAP 6" VERT REINF 4" OR TO CLR COL CMU WALL TYP HORIZ REINF SPLICE LAP
