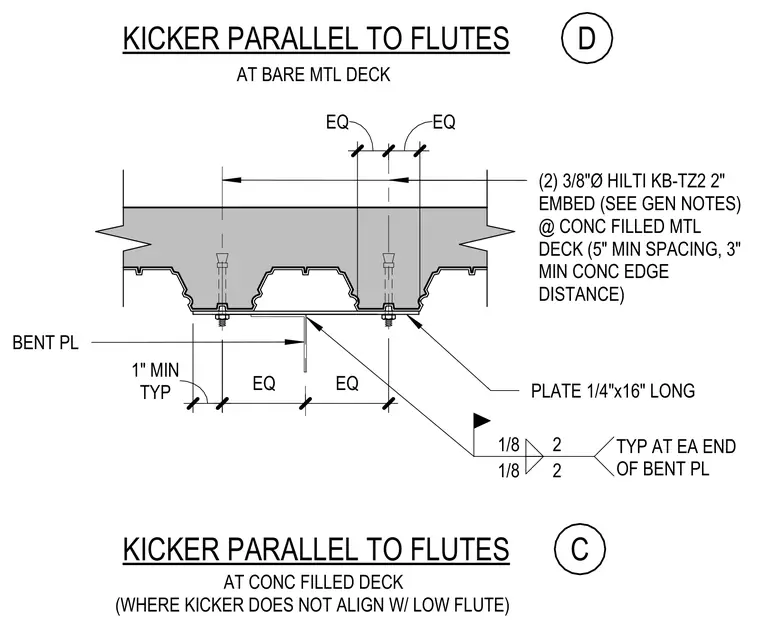

A kicker connection runs parallel to the flutes of a concrete-filled metal deck. A bent plate attaches to the underside of the deck using two three-eighths-inch diameter Hiliti KB-TZ2 expansion anchors with a two-inch embedment into the concrete fill. A one-quarter-inch thick by sixteen-inch long plate is provided at the concrete-filled deck where the kicker does not align with a low flute. The kicker angle is welded to the bent plate with a one-eighth-inch fillet weld at each end.
KICKER PARALLEL TO FLUTES EQ EQ BENT PL (2) 3/8"Ø HILTI KB-TZ2 2" EMBED (SEE GEN NOTES) @ CONC FILLED MTL DECK (5" MIN SPACING, 3" MIN CONC EDGE DISTANCE) PLATE 1/4"x16" LONG EQ EQ AT CONC FILLED DECK (WHERE KICKER DOES NOT ALIGN W/ LOW FLUTE) TYP 1" MIN C KICKER PARALLEL TO FLUTES D AT BARE MTL DECK 1/8 2 1/8 2 TYP AT EA END OF BENT PL
