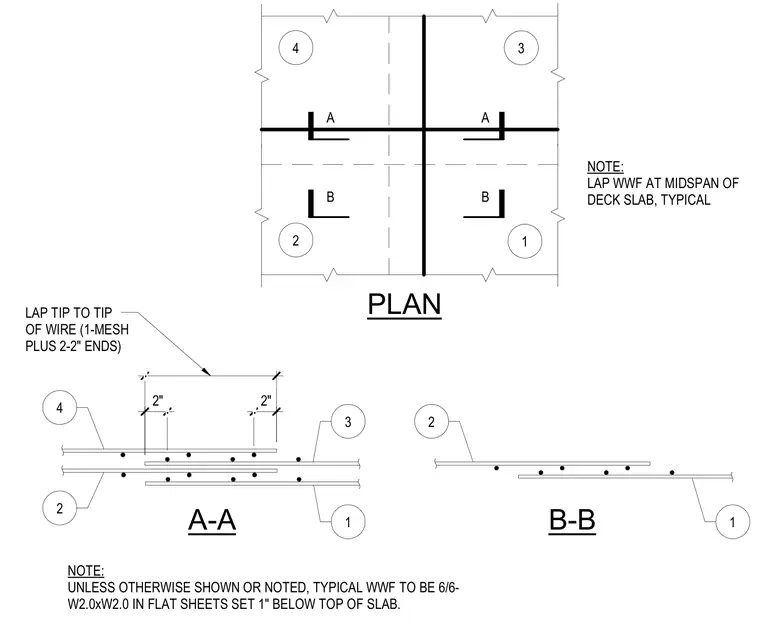

Welded wire fabric sheets are positioned in flat sheets set one inch below the top of the concrete slab using standard 6/6-W2.0xW2.0 wire unless otherwise noted. Wire fabric is lapped tip-to-tip consisting of one mesh plus two-inch ends, with laps positioned at the midspan of the deck slab typically. Sections A-A and B-B illustrate the specific overlapping sequence and layering arrangement for adjacent flat sheets.
2" 2" B A B A A-A PLAN B-B NOTE: UNLESS OTHERWISE SHOWN OR NOTED, TYPICAL WWF TO BE 6/6- W2.0xW2.0 IN FLAT SHEETS SET 1" BELOW TOP OF SLAB. LAP TIP TO TIP OF WIRE (1-MESH PLUS 2-2" ENDS) 2 4 1 3 2 2 1 NOTE: LAP WWF AT MIDSPAN OF DECK SLAB, TYPICAL 1 4 3 . . .
