A cold-formed metal stud wall with Sureboard sheathing anchors to a concrete slab on metal deck using a five-eighths inch diameter anchor bolt placed a minimum of six inches from headed studs. A three by three by one-quarter inch plate washer sits at the sill connection, welded per sheet S7.02. The concrete slab rests on a metal deck of varying span supported by a structural steel beam, with metal deck connections detailed on sheet S5.31 and continuous number five reinforcing bars placed at the wall line.

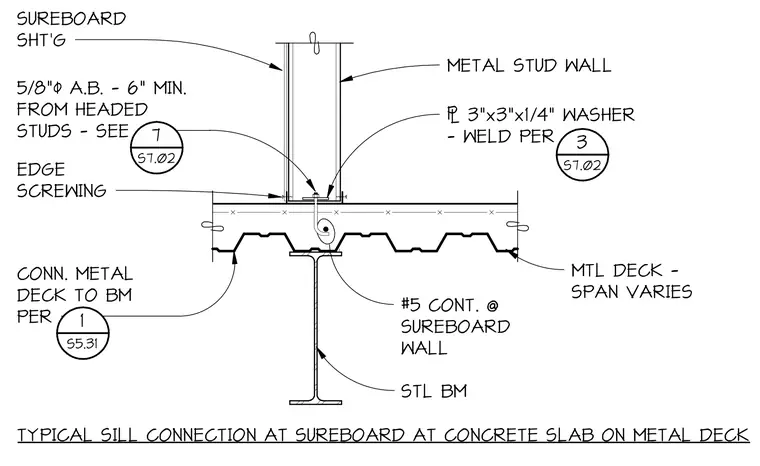

METAL STUD WALL #5 CONT. @ SUREBOARD WALL CONN. METAL DECK TO BM PER SUREBOARD SHT'G 5/8" A.B. - 6" MIN. FROM HEADED STUDS - SEE EDGE SCREWING 1 S5.31 3"x3"x1/4" WASHER - WELD PER 3 S7.02 STL BM 7 S7.02 MTL DECK - SPAN VARIES TYPICAL SILL CONNECTION AT SUREBOARD AT CONCRETE SLAB ON METAL DECK
