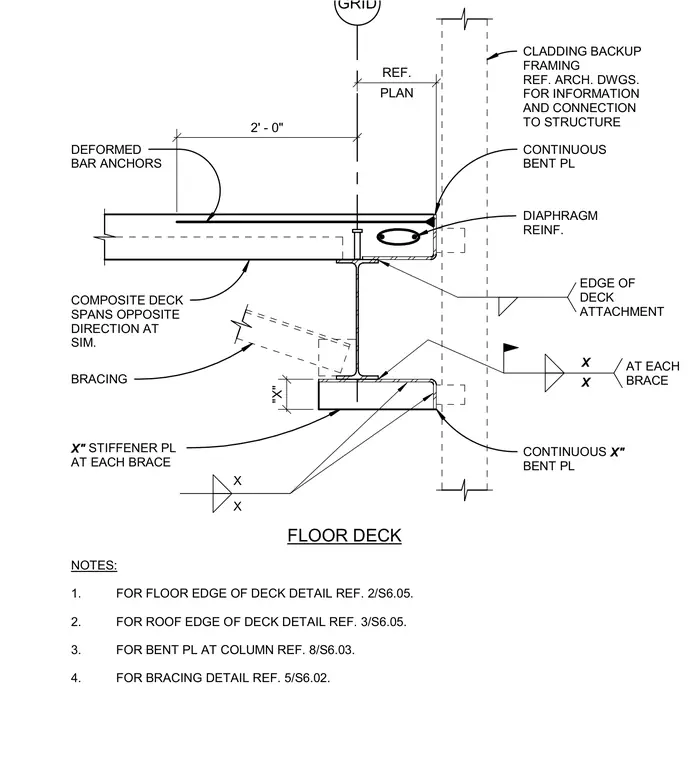

A composite floor deck bears on a perimeter steel beam aligned with a grid line and cladding backup framing. A continuous bent plate caps the edge of the slab, which is reinforced with deformed bar anchors and diaphragm reinforcement. The composite deck spans in the opposite direction at similar grids, and the deck attachment is welded to the top flange. Below, a structural brace frames into the beam web, utilizing a stiffener plate at each brace and a continuous bent plate at the bottom flange. Field weld symbols and dimensions coordinate the attachment of the framing members and edge conditions.
CLADDING BACKUP FRAMING REF. ARCH. DWGS. FOR INFORMATION AND CONNECTION TO STRUCTURE CONTINUOUS X" BENT PL COMPOSITE DECK SPANS OPPOSITE DIRECTION AT SIM. GRID CONTINUOUS BENT PL DIAPHRAGM REINF. DEFORMED BAR ANCHORS BRACING X" STIFFENER PL AT EACH BRACE EDGE OF DECK ATTACHMENT X X AT EACH BRACE 2' - 0" PLAN REF. "X" FLOOR DECK NOTES: 1. FOR FLOOR EDGE OF DECK DETAIL REF. 2/S6.05. 2. FOR ROOF EDGE OF DECK DETAIL REF. 3/S6.05. 3. FOR BENT PL AT COLUMN REF. 8/S6.03. 4. FOR BRACING DETAIL REF. 5/S6.02. X X
