A concrete slab supports a run of typical steel studs spaced at sixteen inches on center unless noted otherwise. Double studs occur at door jambs, utilizing a forty-three mil minimum gauge per the framing schedule. Number ten sheet metal screws secure each side at each jamb stud typically. Two zero point one five seven inch diameter Hilti X-U powder-driven fasteners with one and one-quarter inch embedment anchor the double studs at the slab.

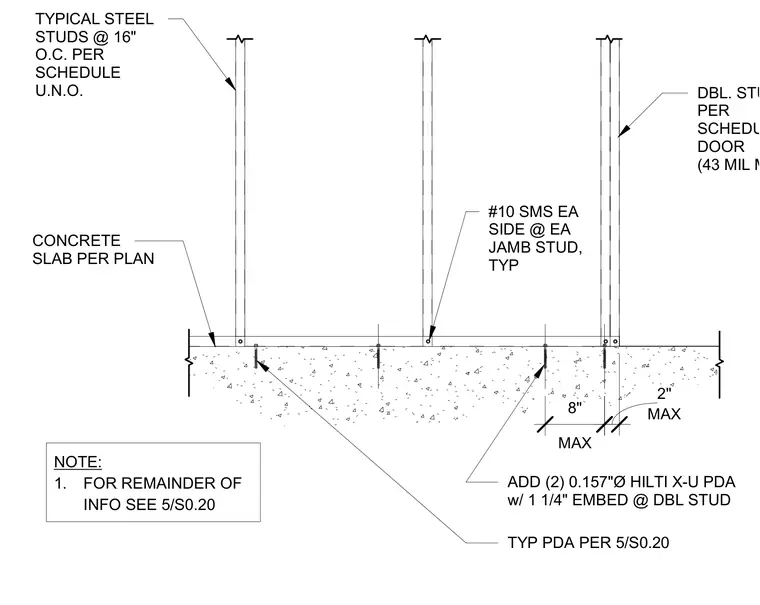

CONCRETE SLAB PER PLAN DBL. STUD PER SCHEDULE AT DOOR (43 MIL MIN) TYPICAL STEEL STUDS @ 16" O.C. PER SCHEDULE U.N.O. #10 SMS EA SIDE @ EA JAMB STUD, TYP ADD (2) 0.157"Ø HILTI X-U PDA w/ 1 1/4" EMBED @ DBL STUD NOTE: 1. FOR REMAINDER OF INFO SEE 5/S0.20 MAX 8" MAX 2" TYP PDA PER 5/S0.20
