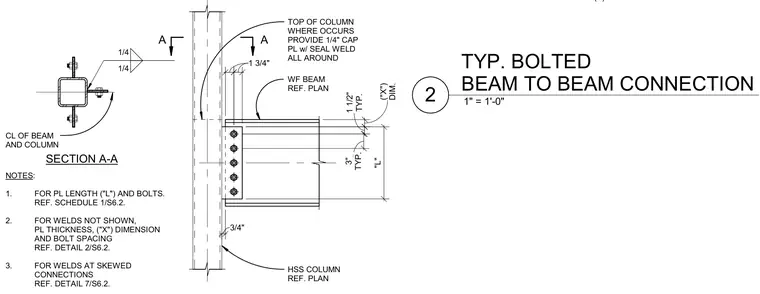

A wide flange beam connects to a hollow structural section column using a bolted shear tab detail. The top of the hollow structural section column receives a one-quarter-inch thick cap plate with a seal weld all around where applicable. Plate length, bolt sizes, and spacing are referenced to schedules and companion details in the drawing set. Field weld plates connect to existing beams as directed by the framing plan.
4. FIELD WELD PLATES AT (E) BEAMS . SECTION A-A TOP OF COLUMN WHERE OCCURS PROVIDE 1/4" CAP PL w/ SEAL WELD ALL AROUND WF BEAM REF. PLAN 1 3/4" 1 3/4" A A DIM. ("X") TYP. 3" "L" HSS COLUMN REF. PLAN 1/4 1/4 CL OF BEAM AND COLUMN NOTES: 1. FOR PL LENGTH ("L") AND BOLTS. REF. SCHEDULE 1/S6.2. 2. FOR WELDS NOT SHOWN, PL THICKNESS, ("X") DIMENSION AND BOLT SPACING REF. DETAIL 2/S6.2. 3. FOR WELDS AT SKEWED CONNECTIONS REF. DETAIL 7/S6.2. TYP. 1 1/2" 3/4" 1" = 1'-0" 2 TYP. BOLTED BEAM TO BEAM CONNECTION
