Cold-formed steel stud walls require horizontal bridging and strapping to provide lateral bracing and prevent stud rotation. A 43-mil track is installed horizontally as blocking at a maximum spacing of eight feet horizontally and four feet vertically at wall ends, with the flange cut and bent and secured using one number ten screw. A continuous two-inch by 33-mil horizontal steel strap is fastened across the stud framing with two number ten screws per stud.

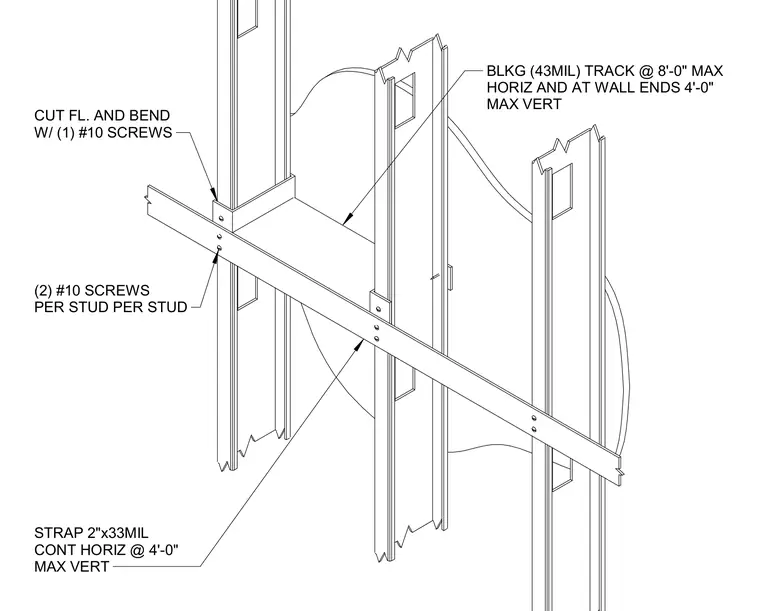

BLKG (43MIL) TRACK @ 8'-0" MAX HORIZ AND AT WALL ENDS 4'-0" MAX VERT CUT FL. AND BEND W/ (1) #10 SCREWS (2) #10 SCREWS PER STUD PER STUD STRAP 2"x33MIL CONT HORIZ @ 4'-0" MAX VERT
