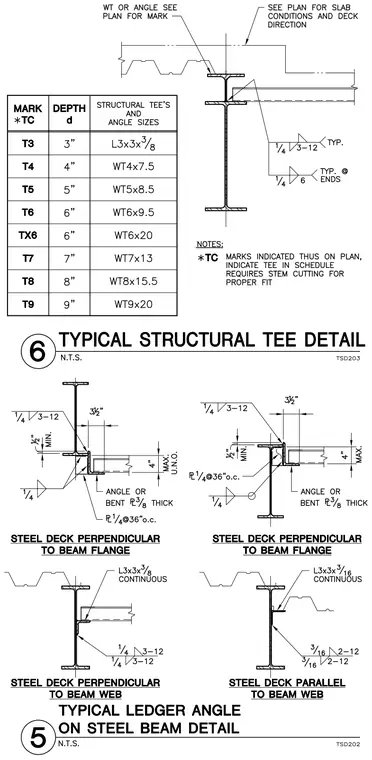

A structural tee or angle is welded to the top flange of a wide flange beam supporting a metal deck and concrete slab. The connection utilizes one-quarter inch fillet welds spaced at twelve inches typical along the tee stem, with additional one-quarter inch welds at six inches at the ends. A schedule defines structural tee and angle sizes ranging from three to nine inches in depth. Ledger angles are detailed with continuous three-inch by three-inch angles secured to beam webs and flanges with specified weld sizes and anchor plates at thirty-six inches on center.
