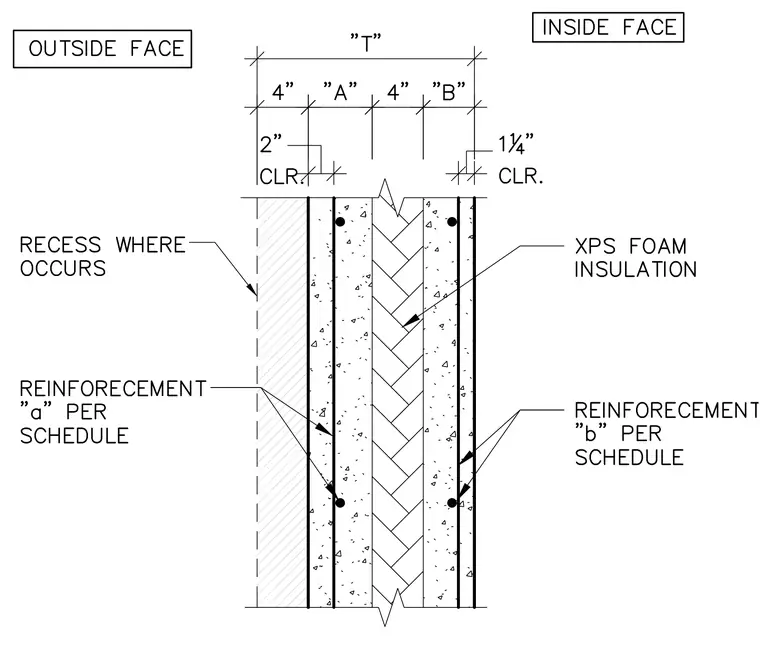

An insulated concrete sandwich wall detail shows an exterior concrete wythe separated from an interior concrete wythe by a central layer of XPS foam insulation. Reinforcement "a" is placed within the outside concrete layer with a two-inch clearance and four-inch dimensioning, including a designated recess where it occurs. Reinforcement "b" is positioned in the inside concrete layer with a one-and-one-quarter-inch clearance. Dimension lines mark the thickness parameters across the assembly.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
