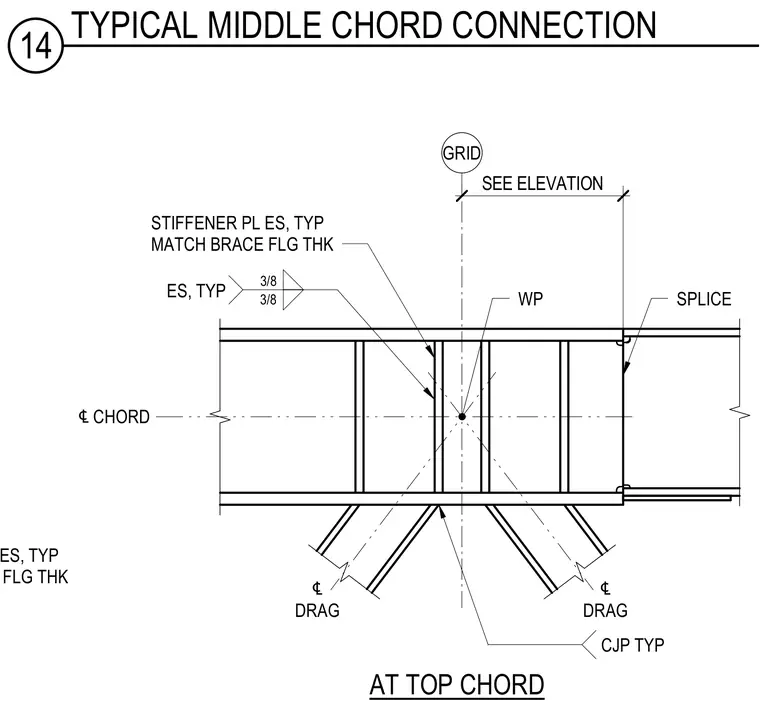

This structural connection detail shows a middle chord joint with diagonal bracing members framing into the chord at a work point. Stiffener plates are welded to each side of the chord, matching the thickness of the brace flanges. Complete joint penetration welds connect the components, while a chord splice occurs near the grid line intersection.
AT TOP CHORD STIFFENER PL ES, TYP MATCH BRACE FLG THK GRID SPLICE STIFFENER PL ES, TYP MATCH BRACE FLG THK ES, TYP 3/8 3/8 CJP TYP WP ℄ CHORD ℄ DRAG ℄ DRAG SEE ELEVATION 14 TYPICAL MIDDLE CHORD CONNECTION
