A concrete shear wall and concrete jamb column connect to a concrete footing using vertical reinforcing dowels extending from the bottom mat of the footing reinforcement. The interface requires a roughened surface to an amplitude of one-quarter inch with a three-inch concrete cover. Vertical wall and column reinforcement laps with the dowels over length Lsbt, or utilizes ACI 318 Type 2 mechanical couplers staggered by twenty-four inches as an alternative. Column ties extend continuously into the footing.

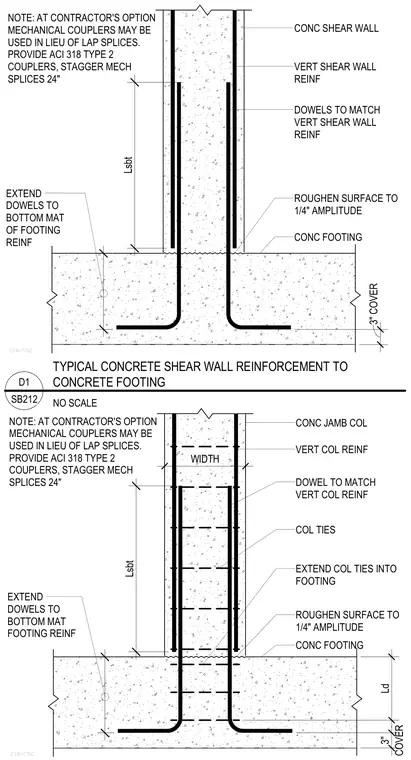

CSW-FTNG Lsbt 1 ' - 3" CONC SHEAR WALL VERT SHEAR WALL REINF DOWELS TO MATCH VERT SHEAR WALL REINF CONC FOOTING EXTEND DOWELS TO BOTTOM MAT OF FOOTING REINF NOTE: AT CONTRACTOR'S OPTION MECHANICAL COUPLERS MAY BE USED IN LIEU OF LAP SPLICES. PROVIDE ACI 318 TYPE 2 COUPLERS, STAGGER MECH SPLICES 24" ROUGHEN SURFACE TO 1/4" AMPLITUDE 3" COVER CSW-FTNG Lsbt 1 ' - 3" CONC JAMB COL VERT COL REINF DOWEL TO MATCH VERT COL REINF CONC FOOTING EXTEND DOWELS TO BOTTOM MAT FOOTING REINF NOTE: AT CONTRACTOR'S OPTION MECHANICAL COUPLERS MAY BE USED IN LIEU OF LAP SPLICES. PROVIDE ACI 318 TYPE 2 COUPLERS, STAGGER MECH SPLICES 24" ROUGHEN SURFACE TO 1/4" AMPLITUDE COL TIES EXTEND COL TIES INTO FOOTING Ld COVER 3" WIDTH NO SCALE SB212 D1 TYPICAL CONCRETE SHEAR WALL REINFORCEMENT TO CONCRETE FOOTING
