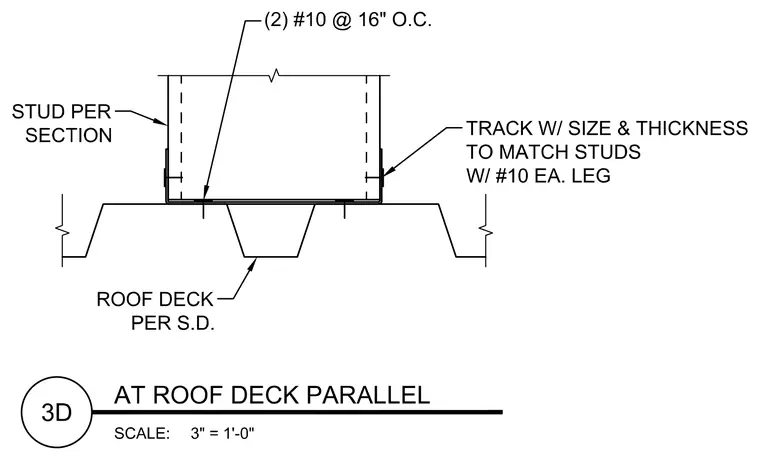

A cold-formed steel track is anchored parallel to the flutes of a structural roof deck with two number ten screws at sixteen inches on center. The track receives studs sized per the structural sections, secured with a number ten fastener at each leg. The underlying roof deck is provided per structural drawings.
