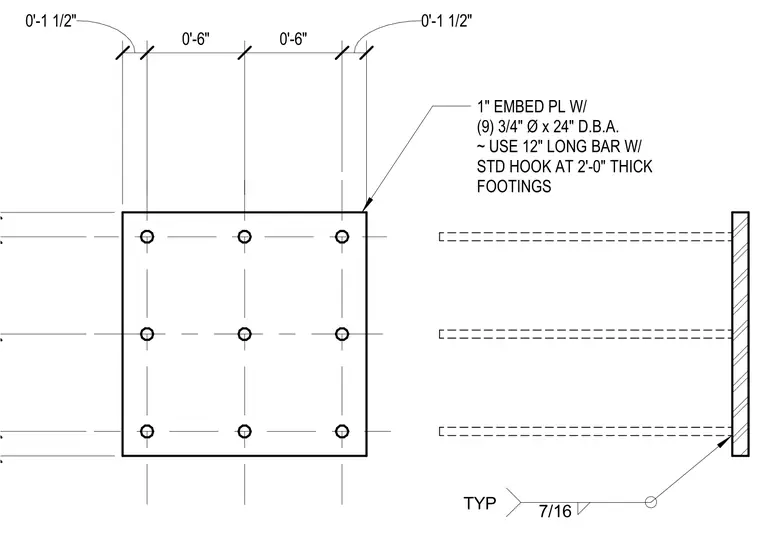

This assembly consists of a one-inch thick steel embed plate featuring a three-by-three grid of nine three-quarter-inch diameter by twenty-four-inch long deformed bar anchors. The anchors are welded to the plate with a seven-sixteenths-inch fillet weld, typical at each connection. For footings that are two feet thick, the design specifies the use of twelve-inch long bars with a standard hook.
Text on the drawing
0'-1 1/2" 0'-6" 0'-6" 0'-1 1/2" 0'-1 1/2" 0'-6" 0'-6" 1" EMBED PL W/ (9) 3/4" Ø x 24" D.B.A. ~ USE 12" LONG BAR W/ STD HOOK AT 2'-0" THICK FOOTINGS
