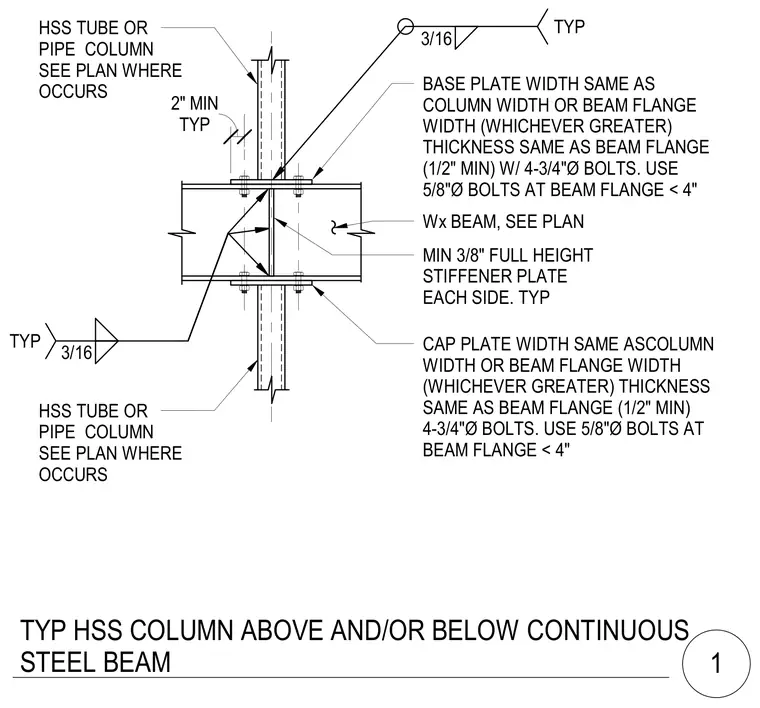

An HSS tube or pipe column splices into a continuous steel beam using cap and base plates. The continuous steel beam runs horizontally with HSS columns aligned above and below, sized per plan. A minimum three-eighths-inch full-height stiffener plate is welded to each side of the beam web using three-sixteenths-inch fillet welds. The cap and base plates match the column width or beam flange width, whichever is greater, with a minimum thickness of one-half-inch matching the beam flange. Four three-quarter-inch-diameter bolts secure the plates, with five-eighths-inch-diameter bolts used when the beam flange is less than four inches wide.
CAP PLATE WIDTH SAME ASCOLUMN WIDTH OR BEAM FLANGE WIDTH (WHICHEVER GREATER) THICKNESS SAME AS BEAM FLANGE (1/2" MIN) 4-3/4"Ø BOLTS. USE 5/8"Ø BOLTS AT BEAM FLANGE < 4" HSS TUBE OR PIPE COLUMN SEE PLAN WHERE OCCURS MIN 3/8" FULL HEIGHT STIFFENER PLATE EACH SIDE. TYP BASE PLATE WIDTH SAME AS COLUMN WIDTH OR BEAM FLANGE WIDTH (WHICHEVER GREATER) THICKNESS SAME AS BEAM FLANGE (1/2" MIN) W/ 4-3/4"Ø BOLTS. USE 5/8"Ø BOLTS AT BEAM FLANGE < 4" 3/16 TYP TYP 2" MIN 3/16 TYP HSS TUBE OR PIPE COLUMN SEE PLAN WHERE OCCURS Wx BEAM, SEE PLAN TYP HSS COLUMN ABOVE AND/OR BELOW CONTINUOUS STEEL BEAM 1
