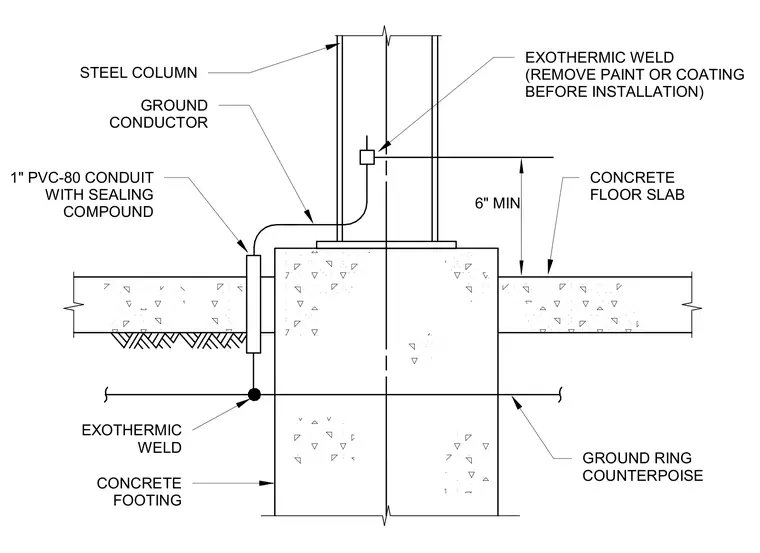

A ground conductor connects to the steel column via an exothermic weld, with paint or coating removed before installation. The conductor routes down into a one-inch PVC-80 conduit equipped with a sealing compound where it penetrates the concrete floor slab. A ground ring counterpoise connects to the concrete footing through an exothermic weld.
GROUND CONDUCTOR 1" PVC-80 CONDUIT WITH SEALING COMPOUND STEEL COLUMN EXOTHERMIC WELD (REMOVE PAINT OR COATING BEFORE INSTALLATION) CONCRETE FLOOR SLAB 6" MIN GROUND RING COUNTERPOISE CONCRETE FOOTING EXOTHERMIC WELD
