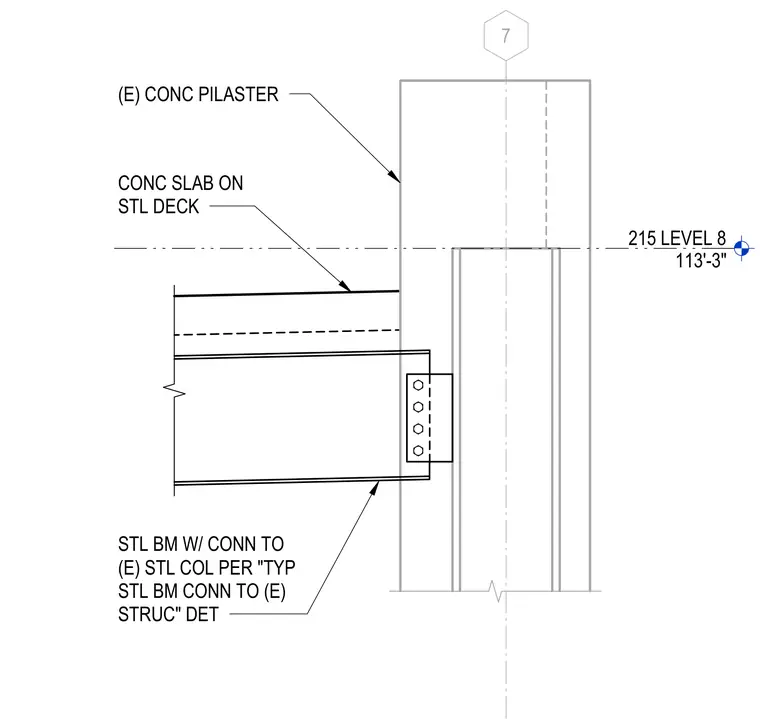

A steel beam connects to an existing structural steel column encased within an existing concrete pilaster using a bolted shear tab connection. The concrete slab on metal deck bears adjacent to the pilaster at Level 8, set at elevation 113'-3". The steel beam framing is detailed per the typical structural connection detail for existing steel structures.
215 LEVEL 8 113'-3" 7 (E) CONC PILASTER CONC SLAB ON STL DECK STL BM W/ CONN TO (E) STL COL PER "TYP STL BM CONN TO (E) STRUC" DET
