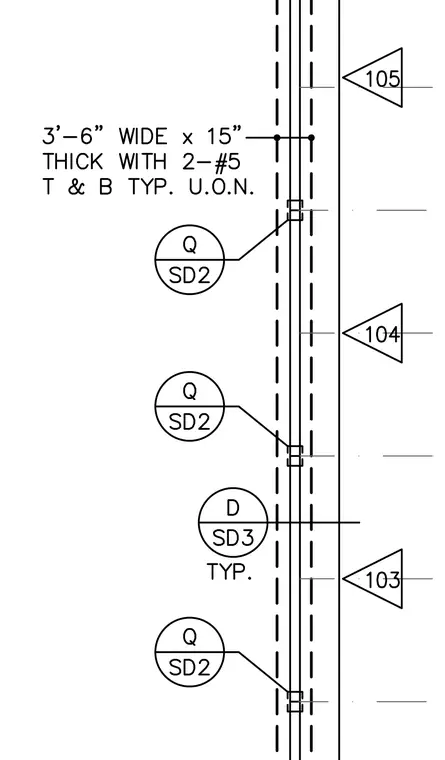

A concrete strip footing measuring three feet six inches wide by fifteen inches thick is reinforced with two number five bars at the top and bottom typically, unless otherwise noted. The assembly includes detail reference callouts pointing to standard structural details SD2 and SD3, alongside elevation markers.
