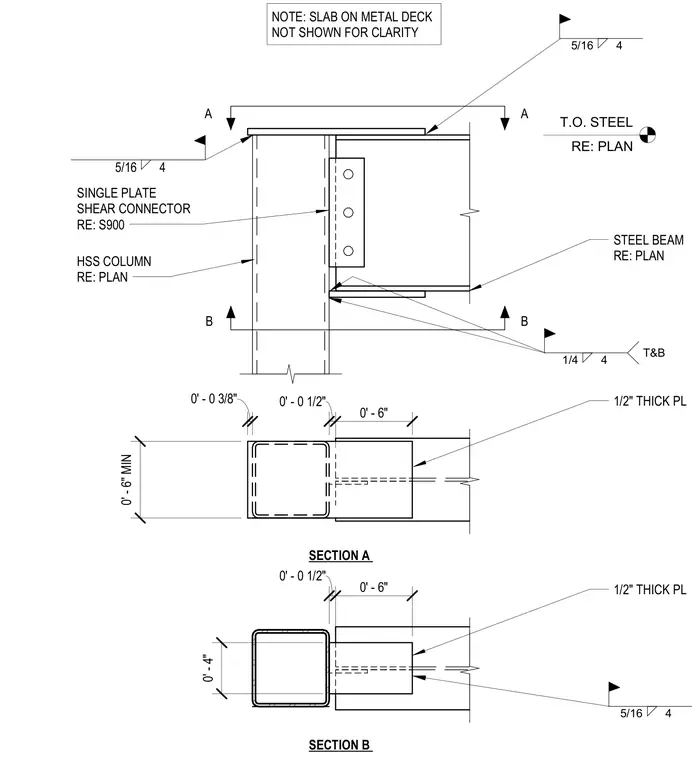

A steel beam frames into a hollow structural section column with top and bottom moment plates welded to the column face and beam flanges. A single plate shear connector with three bolt holes is welded to the column web and bolted to the beam web. Section A details the top plate measuring six inches by six inches with a half-inch thickness welded with quarter-inch fillet welds top and bottom. Section B details the bottom plate welded with five-sixteenth-inch fillet welds. Five-sixteenth-inch fillet welds connect the top and bottom plates to the hollow structural section column, and a general note indicates the slab on metal deck is omitted for clarity.
5/16 4 0' - 0 1/2" 0' - 6" A A STEEL BEAM RE: PLAN HSS COLUMN RE: PLAN 1/2" THICK PL 0' - 6" MIN B B SECTION A SINGLE PLATE SHEAR CONNECTOR RE: S900 0' - 0 1/2" 0' - 6" 1/2" THICK PL 0' - 4" SECTION B 1/4 4 T&B 5/16 4 0' - 0 3/8" 5/16 4 NOTE: SLAB ON METAL DECK NOT SHOWN FOR CLARITY T.O. STEEL RE: PLAN
