An opening in a concrete floor over metal deck is framed with structural steel angles installed before coring. The angles are attached to the deck using one-half-inch diameter Simpson Titen HD screws, one-half-inch diameter Powers wedge bolts, or one-half-inch diameter Hilti Kwik Bolt expansion anchors spaced at twelve inches on center with four-inch maximum embedment. Each corner of the opening is core drilled and connected by saw-cutting.

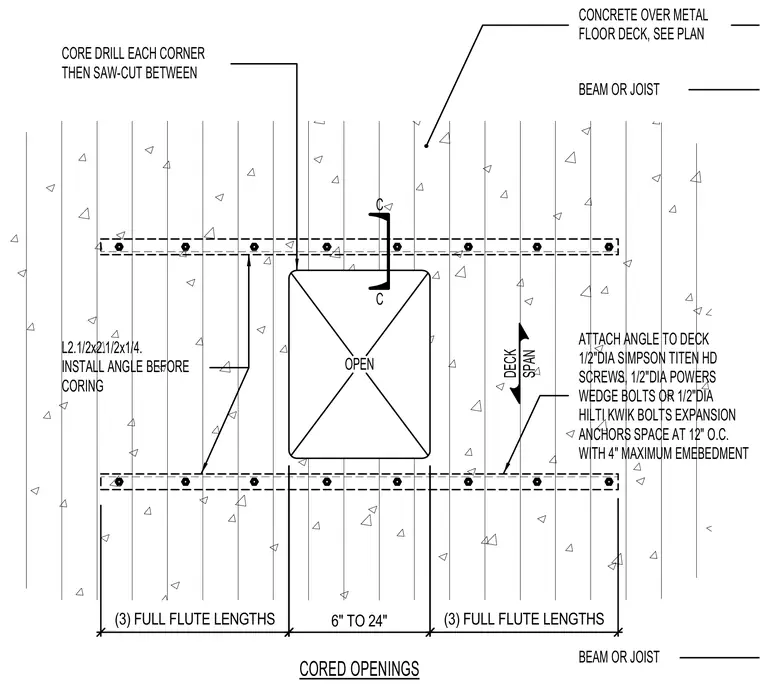

DECK SPAN OPEN L2.1/2x2.1/2x1/4. INSTALL ANGLE BEFORE CORING ATTACH ANGLE TO DECK 1/2"DIA SIMPSON TITEN HD SCREWS, 1/2"DIA POWERS WEDGE BOLTS OR 1/2"DIA CONCRETE OVER METAL FLOOR DECK, SEE PLAN CORED OPENINGS BEAM OR JOIST BEAM OR JOIST CORE DRILL EACH CORNER THEN SAW-CUT BETWEEN HILTI KWIK BOLTS EXPANSION ANCHORS SPACE AT 12" O.C. WITH 4" MAXIMUM EMEBEDMENT C C (3) FULL FLUTE LENGTHS 6" TO 24" (3) FULL FLUTE LENGTHS
