Structural · S-8BRYW

Fall Arrest and Antenna System Connection to Roof Framing

Materials

Steel Metal (misc.)

Elements

Columns Beams Roofs Decks Arches Bracing Insulation Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Welded Connection Deck Attachment

About this detail

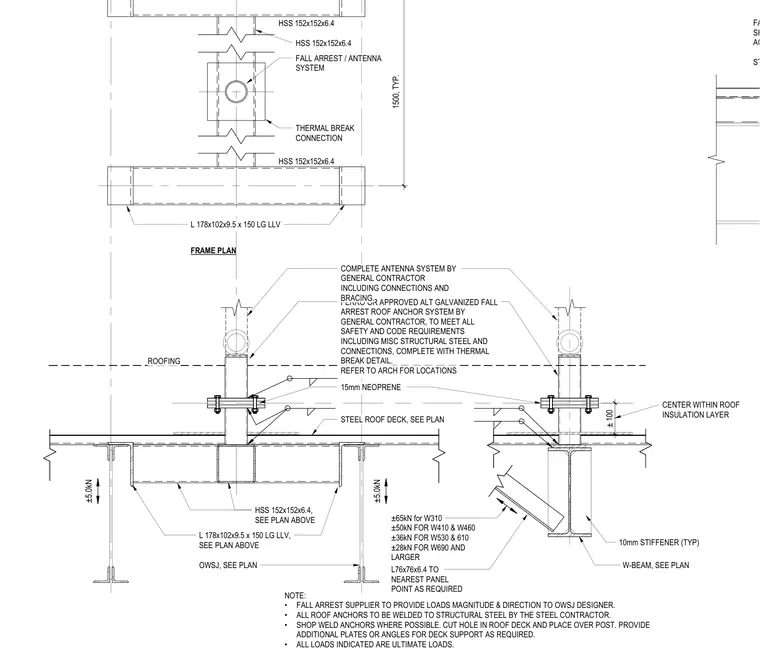

A fall arrest anchor or antenna system post penetrates the roofing assembly and fastens to a hollow structural section infill frame. A fifteen-millimeter neoprene thermal break connection separates structural components while transferring ultimate loads to the supporting open web steel joist or wide-flange beam below. Ten-millimeter typical stiffener plates reinforce the connection, and supplemental angles provide deck support where required. Powder-actuated fasteners secure the steel decking to the hollow structural section infill at one hundred fifty millimeters on center typical.
