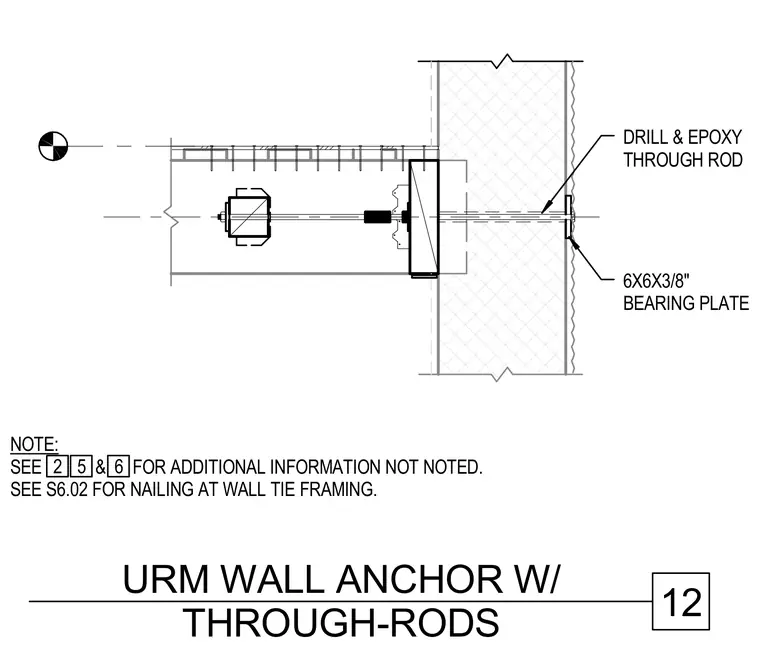

An unreinforced masonry wall anchor secures structural framing using a through-rod embedded with epoxy and a 6x6x3/8 inch exterior bearing plate. The through-rod extends through the masonry wall to anchor into the supporting framing.
DRILL & EPOXY THROUGH ROD NOTE: SEE & FOR ADDITIONAL INFORMATION NOT NOTED. SEE S6.02 FOR NAILING AT WALL TIE FRAMING. 2 5 6 6X6X3/8" BEARING PLATE 12 URM WALL ANCHOR W/ THROUGH-RODS
