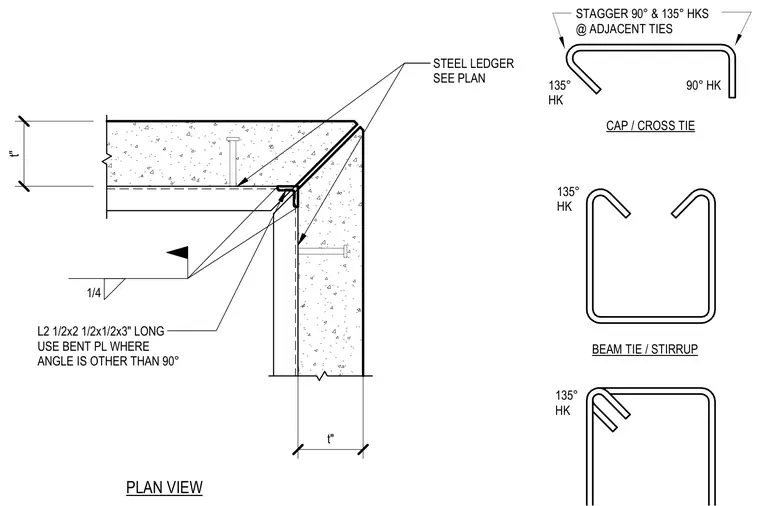

A structural steel ledger angle measuring 2 1/2 by 2 1/2 by 1/2 inches by 3 inches long is embedded at a concrete wall corner. The angle is secured with headed stud anchors sized per plan and welded with a 1/4 inch fillet weld. A bent plate is specified where the corner angle is other than 90 degrees. Reinforcing details illustrate beam ties, stirrups, and cap cross ties with alternating 90 degree and 135 degree hooks staggered at adjacent ties.
CAP / CROSS TIE BEAM TIE / STIRRUP 135° HK 90° HK 135° HK 135° HK STAGGER 90° & 135° HKS @ ADJACENT TIES t" STEEL LEDGER SEE PLAN L2 1/2x2 1/2x1/2x3" LONG USE BENT PL WHERE ANGLE IS OTHER THAN 90° 1/4 t" PLAN VIEW
