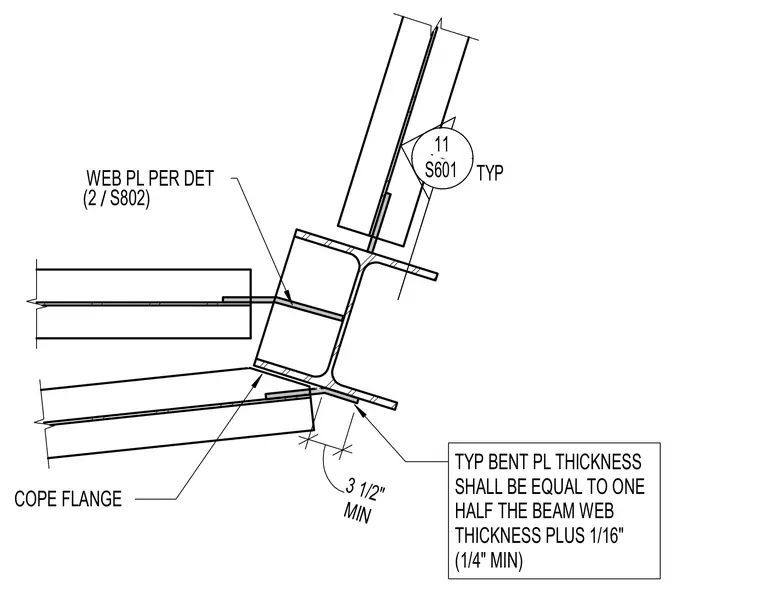

Multiple steel beams frame into a structural steel column flange with web plates and coped beam flanges. The web plate thickness is sized per detail 2 on sheet S802. A typical bent plate thickness equals one half the beam web thickness plus one sixteenth of an inch with a one quarter inch minimum. Beams feature coped flanges and maintain a minimum three and a half inch dimension.
WEB PL PER DET / (2 S802) MIN 3 1/2" TYP BENT PL THICKNESS SHALL BE EQUAL TO ONE HALF THE BEAM WEB THICKNESS PLUS 1/16" (1/4" MIN) 11 S601 TYP COPE FLANGE
