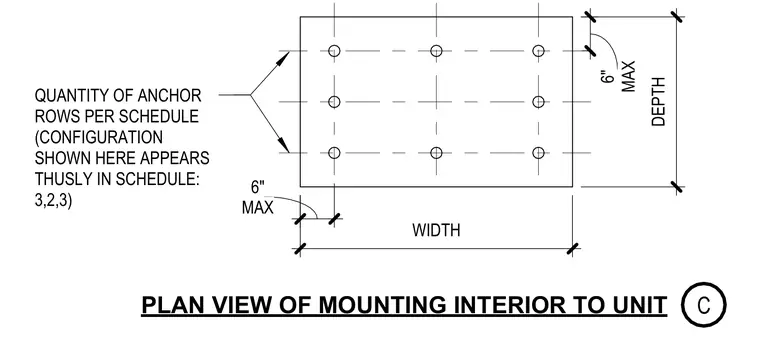

Plan view of an interior mounting unit showing anchor layout and spacing configurations. The layout dimensioning restricts anchor rows to a maximum depth and width with a six-inch maximum edge distance. The quantity and configuration of anchor rows are determined per schedule, with a representative pattern showing three, two, and three anchors across rows.
PLAN VIEW OF MOUNTING INTERIOR TO UNIT DEPTH MAX 6" MAX 6" WIDTH QUANTITY OF ANCHOR ROWS PER SCHEDULE (CONFIGURATION SHOWN HERE APPEARS THUSLY IN SCHEDULE: 3,2,3) C
