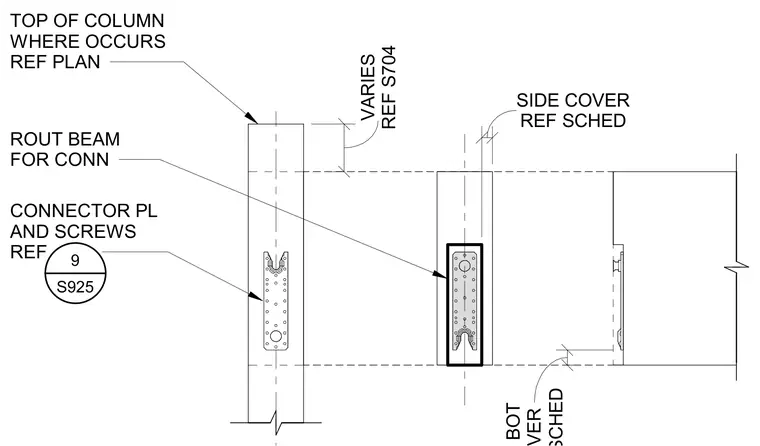

A single connector plate and screws attach to a column with the beam routed to receive the connector per plan and schedule. Side and bottom cover dimensions vary according to structural sheet references. The top of the column aligns as detailed on sheet S704.
REF S704 VARIES TOP OF COLUMN WHERE OCCURS REF PLAN ROUT BEAM FOR CONN CONNECTOR PL AND SCREWS REF REF SCHED SIDE COVER 9 S925
