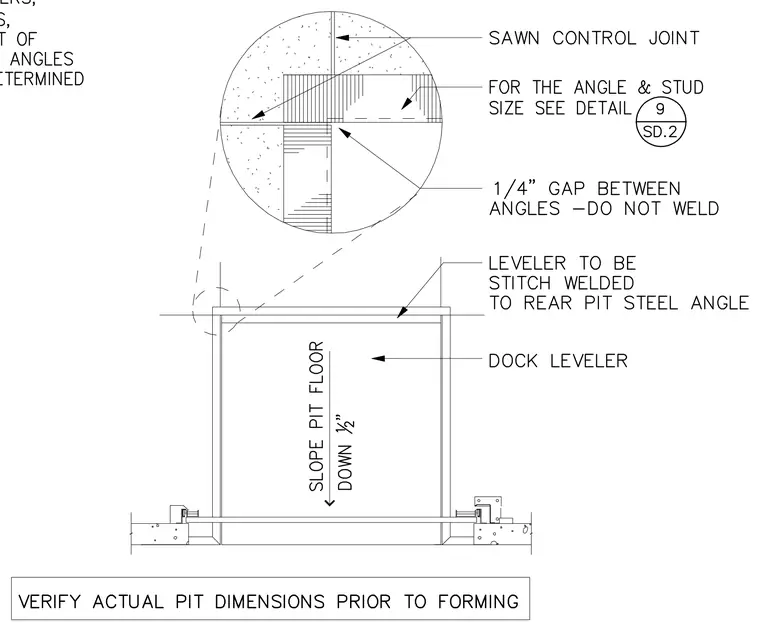

A dock leveler pit framing assembly features a leveler stitch welded to the rear pit steel angle. An enlarged callout highlights a sawn control joint and specifies a one-quarter-inch gap left unwelded between the intersecting angles. Angle and stud sizes are referenced to detail nine on sheet SD.2, and pit floor slopes down one-half inch. A general note mandates verifying actual pit dimensions prior to forming.
