Metal deck bears on top of a concrete masonry unit wall with a minimum two-inch bearing where decks run perpendicular to the wall. An embed plate measuring 1/2 inch by 5 inches by 1'-8" long is spaced at 2'-0" on center and secured with two 3/4-inch diameter ASTM A307 embedded headed bolts featuring an 8-inch embedment. Non-shrink grout fills the top course voids around the anchors. The wall is reinforced with two continuous number 4 rebars unless noted otherwise on the wall elevation. A plan view details a 5-inch by 20-inch plate spaced at 24 inches on center.

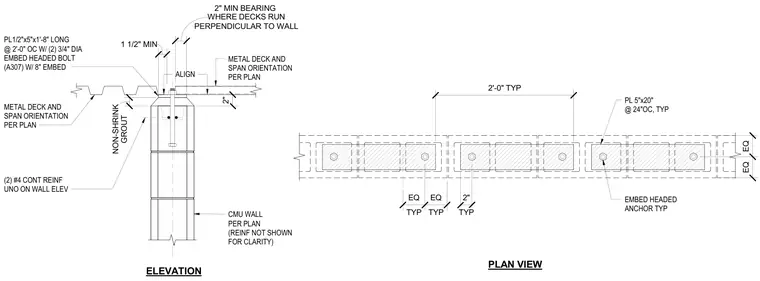

ELEVATION PERPENDICULAR TO WALL 2" MIN BEARING WHERE DECKS RUN 1 1/2" MIN 2" CMU WALL PER PLAN (REINF NOT SHOWN FOR CLARITY) (2) #4 CONT REINF UNO ON WALL ELEV METAL DECK AND SPAN ORIENTATION PER PLAN GROUT NON-SHRINK ALIGN PL1/2"x5"x1'-8" LONG @ 2'-0" OC W/ (2) 3/4" DIA EMBED HEADED BOLT (A307) W/ 8" EMBED METAL DECK AND SPAN ORIENTATION PER PLAN PLAN VIEW TYP 2" 2'-0" TYP TYP EQ TYP EQ EQ EQ EMBED HEADED ANCHOR TYP PL 5"x20" @ 24"OC, TYP
