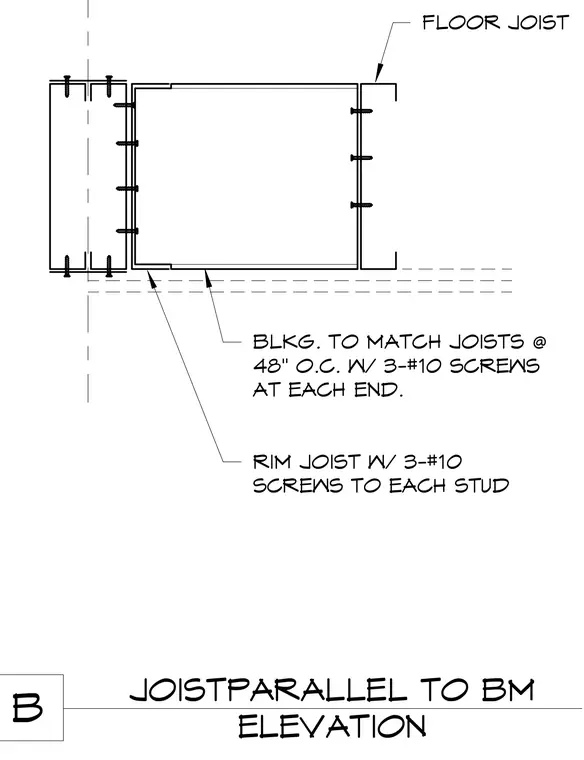

Cold-formed steel floor framing featuring a parallel floor joist connected to a box beam header. Blocking matching the joist depth is installed at forty-eight inches on center and secured with three number ten screws at each end. A rim joist is attached to each stud with three number ten screws.
JOISTPARALLEL TO BM ELEVATION BLKG. TO MATCH JOISTS @ 48" O.C. W/ 3-#10 SCREWS AT EACH END. FLOOR JOIST RIM JOIST W/ 3-#10 SCREWS TO EACH STUD B
