Structural · S-8AWBV

Typical Steel Treads

Materials

Steel

Elements

Stairs Arches

Connections

Welded Connection

About this detail

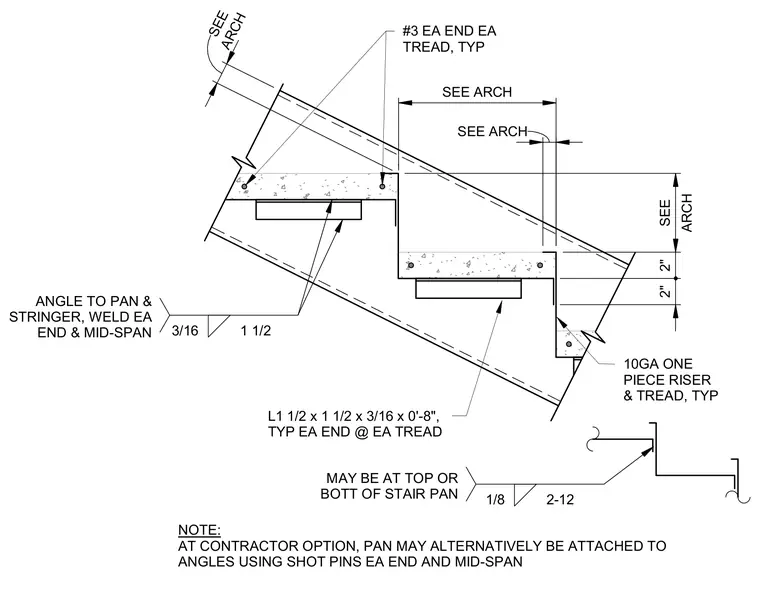

Ten-gauge one-piece steel pans serve as combined stair risers and treads, reinforced with number three bars at each end of each tread. A 1 1/2 by 1 1/2 by 3/16 inch angle clip measuring zero feet eight inches long connects the pan to the stair stringer at each end of every tread. The angle is secured with three-sixteenths inch fillet welds at each end and mid-span, or alternatively attached using shot pins at contractor option. Reinforcement or placement details are coordinated with architectural drawings as noted.
