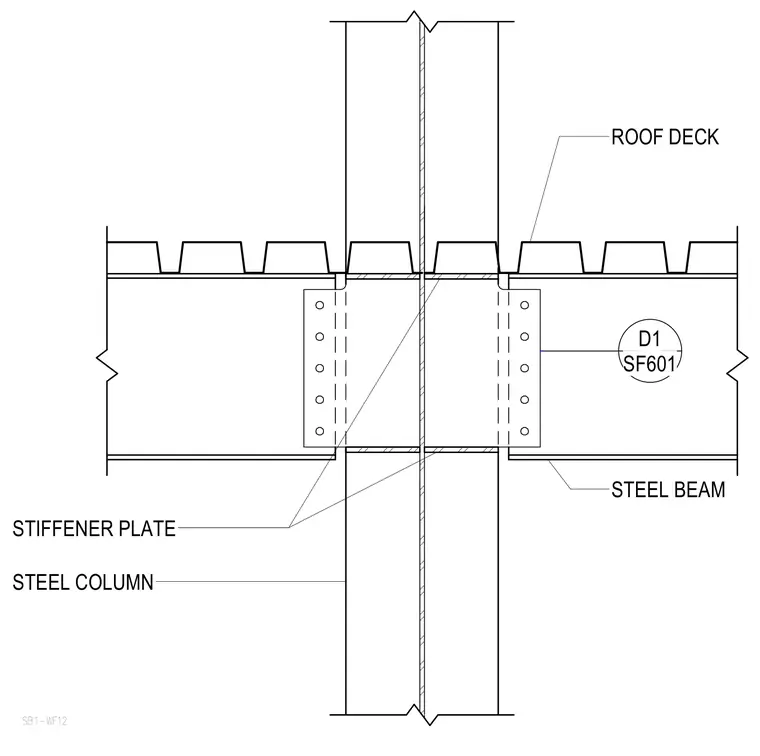

A wide-flange steel beam connects to a vertical steel column utilizing bolted flange plates or connection tabs. Stiffener plates are welded horizontally between the column flanges to align with the beam top and bottom flanges. Corrugated metal roof deck bears continuously across the top flange of the steel beam. Additional detail reference callouts appear adjacent to the framing members.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
