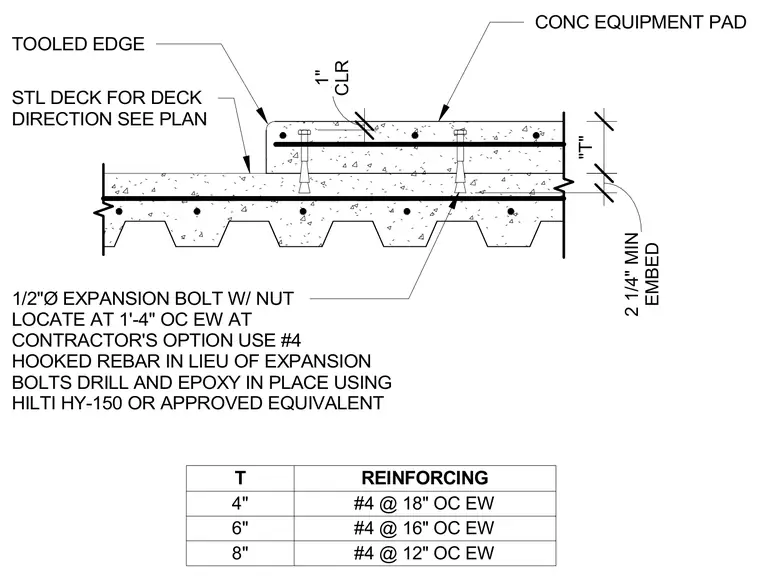

A concrete equipment pad sits atop a composite steel deck with a specified thickness 'T'. One-half-inch diameter expansion bolts with nuts are spaced at one foot four inches on center each way, with a minimum embedment of two and one-quarter inches. Alternatively, the contractor may use number four hooked rebar drilled and epoxied in place using Hilti HY-150 or approved equivalent in lieu of expansion bolts. A reinforcing schedule provides varying size and spacing options based on pad thickness, including number four bars at eighteen, sixteen, or twelve inches on center each way. The pad edge features a tooled finish and maintains a one-inch clear cover.
CLR 1" "T" EMBED 2 1/4" MIN STL DECK FOR DECK DIRECTION SEE PLAN TOOLED EDGE 1/2"Ø EXPANSION BOLT W/ NUT LOCATE AT 1'-4" OC EW AT CONTRACTOR'S OPTION USE #4 HOOKED REBAR IN LIEU OF EXPANSION BOLTS DRILL AND EPOXY IN PLACE USING HILTI HY-150 OR APPROVED EQUIVALENT CONC EQUIPMENT PAD T REINFORCING 4" #4 @ 18" OC EW 6" #4 @ 16" OC EW 8" #4 @ 12" OC EW
