A single angle L4x3x3/8 connects a supported steel beam web to a supporting beam web using standard or horizontal short slotted holes with a three-inch outstanding leg. Edge distances and spacings include one and one-quarter inch minimums, one and one-half inch minimums, and three inches typical.

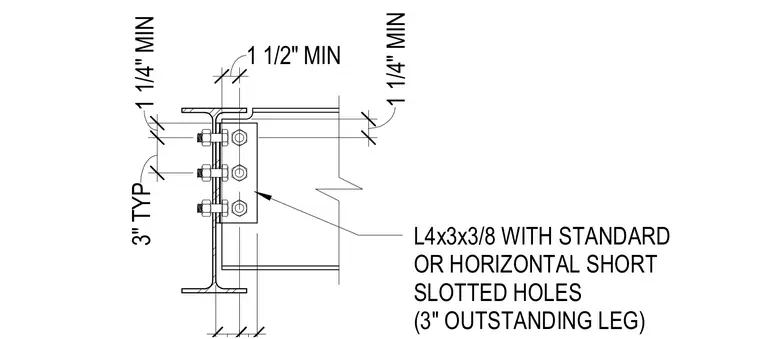

L4x3x3/8 WITH STANDARD OR HORIZONTAL SHORT SLOTTED HOLES (3" OUTSTANDING LEG) 3" TYP 1 1/4" MIN 1 1/4" MIN 1 1/2" MIN
