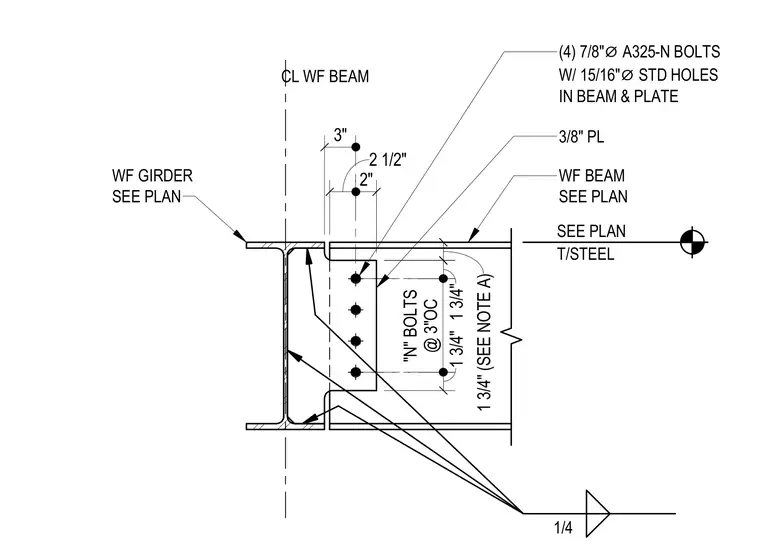

A wide flange beam connects to the web of a wide flange girder using a three-eighths inch thick steel plate welded to the girder and bolted to the beam web. Four seven-eighths inch diameter A325-N bolts with fifteen-sixteenths inch diameter standard holes secure the beam web to the plate at three-inch on-center spacings. A quarter-inch fillet weld secures the plate to the supporting girder web.
T/STEEL SEE PLAN CL WF BEAM WF BEAM SEE PLAN 1/4 "N" BOLTS @ 3"OC 2 1/2" 2" 3" 1 3/4" 1 3/4" 1 3/4" (SEE NOTE A) WF GIRDER SEE PLAN 3/8" PL (4) 7/8" ⌀ A325-N BOLTS W/ 15/16" ⌀ STD HOLES IN BEAM & PLATE
