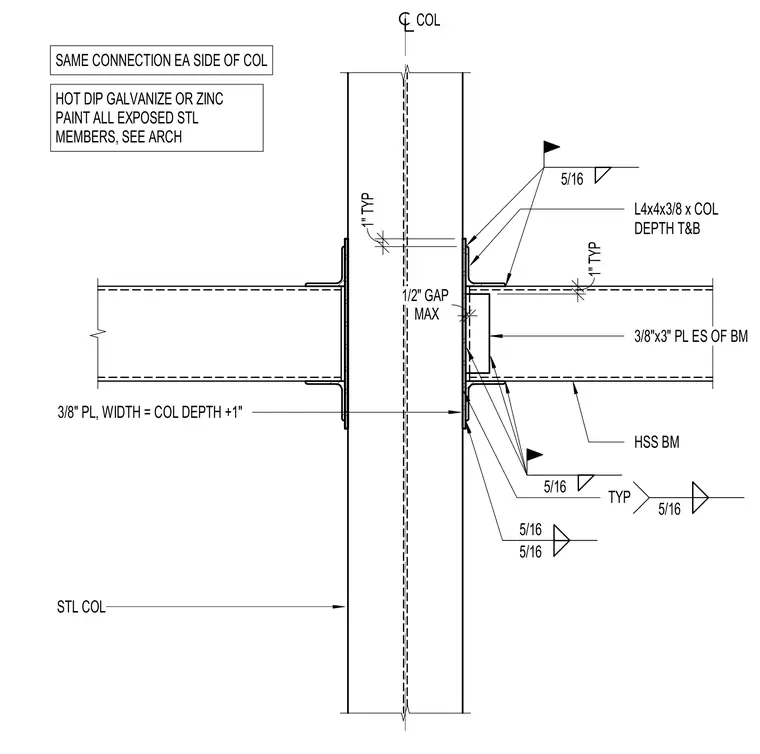

The steel beam connects to the hollow structural section column web using top and bottom L4x4x3/8 angles matching the column depth, secured with five-sixteenths inch fillet welds. A three-eighths inch plate, sized to the column depth plus one inch, is welded across the web. Additional three-eighths by three-inch plates are provided on each side of the beam with five-sixteenths inch welds. A maximum one-half inch gap is maintained between the beam end and the column face, with one-inch typical clearances. All exposed steel members receive a hot-dip galvanize or zinc paint finish as specified.
1" TYP STL COL HSS BM 1" TYP 5/16 TYP MAX 1/2" GAP COL 3/8" PL, WIDTH = COL DEPTH +1" 5/16 5/16 3/8"x3" PL ES OF BM 5/16 5/16 L4x4x3/8 x COL DEPTH T&B SAME CONNECTION EA SIDE OF COL HOT DIP GALVANIZE OR ZINC PAINT ALL EXPOSED STL MEMBERS, SEE ARCH
