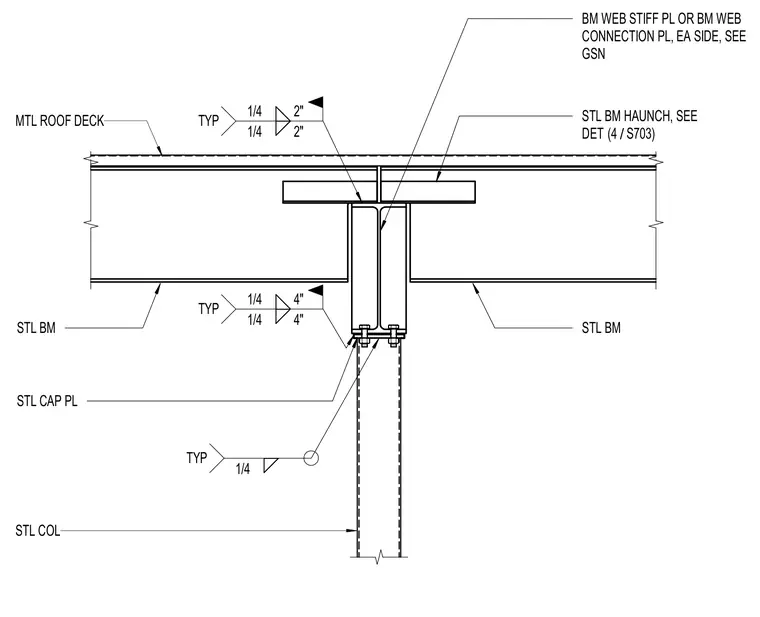

Steel beams frame into a structural steel column topped with a steel cap plate. Beam web stiffener plates or connection plates are welded to each side of the beam web. A steel beam haunch is provided at the top flange connection, sized per structural notes and referenced details. Fillet welds are specified typically at one-quarter inch size. Metal roof deck bears across the top of the steel framing members.
BM WEB STIFF PL OR BM WEB CONNECTION PL, EA SIDE, SEE GSN STL CAP PL STL COL MTL ROOF DECK 1/4 TYP 1/4 1/4 4" 4" TYP STL BM STL BM STL BM HAUNCH, SEE DET 1/4 1/4 2" 2" TYP / (4 S703)
