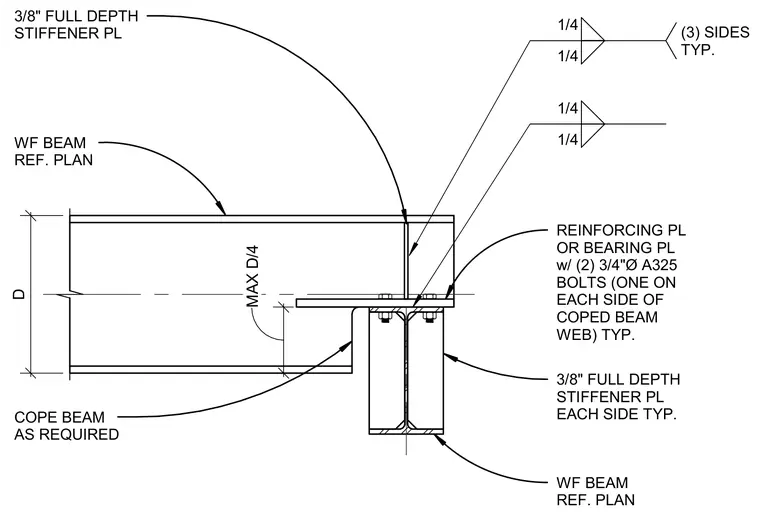

A wide flange beam is coped as required at the top flange to clear a supporting wide flange beam. A reinforcing or bearing plate is bolted to the coped beam web using two three-quarter-inch diameter A325 bolts, placed one on each side of the web. The supporting beam is reinforced with three-eighth-inch full depth stiffener plates on each side, welded with quarter-inch fillet welds along three sides typically.
REINFORCING PL OR BEARING PL w/ (2) 3/4"Ø A325 BOLTS (ONE ON EACH SIDE OF COPED BEAM WEB) TYP. WF BEAM REF. PLAN WF BEAM REF. PLAN COPE BEAM AS REQUIRED 1/4 1/4 3/8" FULL DEPTH STIFFENER PL EACH SIDE TYP. 1/4 1/4 (3) SIDES TYP. 3/8" FULL DEPTH STIFFENER PL D MAX D/4
