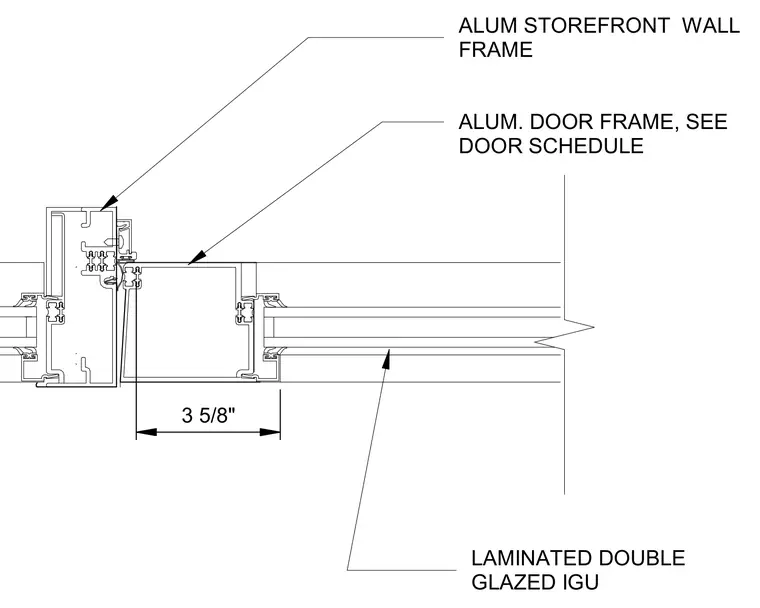

An aluminum door frame connects directly to a three and five-eighths inch aluminum storefront wall frame. Laminated double glazed insulated glass units are installed within the framing system.
ALUM. DOOR FRAME, SEE DOOR SCHEDULE LAMINATED DOUBLE GLAZED IGU 3 5/8" ALUM STOREFRONT WALL FRAME
