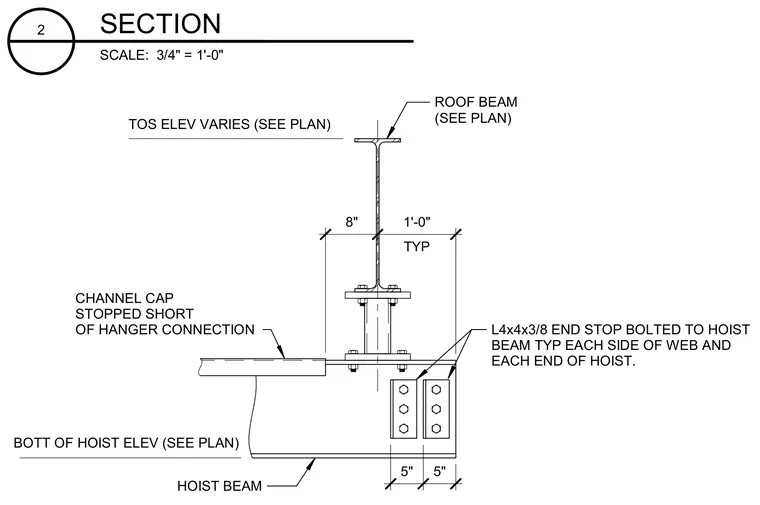

An L4x4x3/8 angle serves as an end stop bolted to each side of the hoist beam web at each end of the hoist. The channel cap stops short of the hanger connection. The roof beam connects above with the top of steel elevation varying per plan, and the bottom of hoist elevation is also sized per plan.
BOTT OF HOIST ELEV (SEE PLAN) 8" TYP 1'-0" 5" 5" ROOF BEAM (SEE PLAN) TOS ELEV VARIES (SEE PLAN) HOIST BEAM L4x4x3/8 END STOP BOLTED TO HOIST BEAM TYP EACH SIDE OF WEB AND EACH END OF HOIST. CHANNEL CAP STOPPED SHORT OF HANGER CONNECTION SCALE: 3/4" = 1'-0" 2 SECTION
