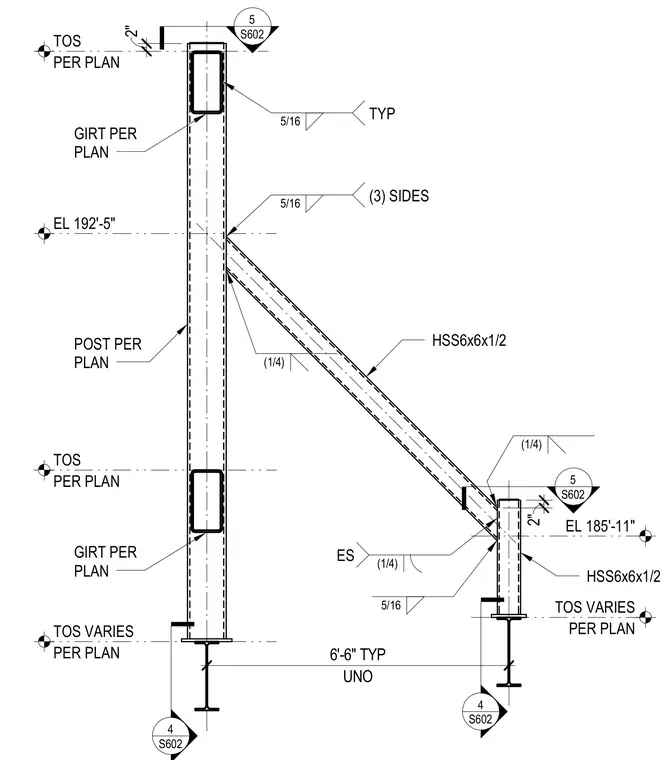

An HSS6x6x1/2 vertical post connects to a matching HSS6x6x1/2 diagonal brace welded with 5/16-inch fillet welds on three sides and a 1/4-inch fillet weld elsewhere. Horizontal girts sized per plan frame into the vertical post. Elevation markers and top of steel elevations are defined at multiple levels with standard framing dimensions.
EL 185'-11" PER PLAN TOS VARIES PER PLAN TOS VARIES PER PLAN TOS EL 192'-5" PER PLAN TOS 2" TYP 5/16 (3) SIDES 5/16 (1/4) GIRT PER PLAN GIRT PER PLAN POST PER PLAN UNO 6'-6" TYP HSS6x6x1/2 HSS6x6x1/2 (1/4) 5/16 ES (1/4) 5 S602 5 S602 4 S602 4 S602 2"
